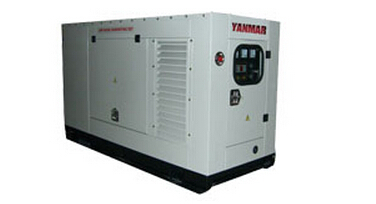

Yanmar Series 20-50kw Generator

Quantity:
  • Yanmar

MODEL OF GEN-SET  GB20SY GB30SY GB36SY GB45SY GB50SY
Continuous output of gen-set  20KW 30KW 36KW 45KW 50KW
DIESEL  ENGINE Model 4TNV84T-GGE 4TNV98-GGE 4TNV98T-GGE 4TNV106-GGE 4TNV106T-GGE
Type In-line, 4-stroke, direct injection
No. of cylinder 4 4 4 4 4
Induction system Turbocharged Naturally Aspirated Turbocharged Naturally Aspirated Turbocharged
Displacement(L) 1.995 3.319 3.319 4.412 4.412
Compression ratio 18.9:1 18.5:1 18.5:1 18:01 18:01
Bore*Stroke(mm) 84 * 90 98 * 110 98 * 110 106 * 125 106 * 125
Rated output(KW) 26.8 40.8 50.1 58.7 66.9
Rated speed(rpm) 1800
Fuel consumption(g/kw.h) ≤218  ≤218  ≤218 ≤218 ≤218
Lubricant capacity(L) 7.4 10.5 10.5 14 14
Coolant capacity(L) 2.7 4.2 4.2 6 6
Cooling method positive water cooling cycle
Starting method D.C. 12V Electric starting
ALTERNATOR Model (Stamford) BCI184F BCI184H UCI224C UCI224E UCI224F
Rated power 20KW 30KW 36KW 45KW 50KW
Rated voltage 120/240 (208/120; 240/138; 480/277; etc.)
Rated current(A) According to the selected voltage and phase
Rated frequency 60HZ
Rated speed(rpm) 1800
Insulation class H
Power factor 1 for single phase / 0.8 lagging for 3-phase
Phase connection 1-phase or 3-phase
Winding connection 3 or 4 -wire connected (12-wire for 3-phase)
Excitation method Brushless
Voltage regulation AVR
CONTROL PANEL V-meter, A-meter, Frequency meter, circuit breaker, transfer switch, temp.and pressure gauges, indicating lamp, hour meter, key starter, etc.
