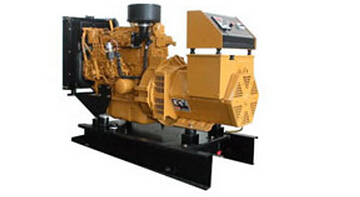

MODEL OF GEN-SET | GB08Y | GB10Y | GB12Y | GB16Y |
Continuous output of gen-set | 8KW | 10KW | 12KW | 16KW |
DIESEL ENGINE | Model | 3TNV76-GGE | 3TNV82A-GGE | 3TNV88-GGE | 4TNV88-GGE |
Type | In-line, 4-stroke, direct injection |
No. of cylinder | 3 | 3 | 3 | 4 |
Induction system | Naturally aspirated |
Displacement(L) | 1.116 | 1.331 | 1.642 | 2.19 |
Compression ratio | 23.5:1 | 19.2:1 | 19.1:1 | 19.1:1 |
Bore*Stroke(mm) | 76 * 82 | 82 * 84 | 88 * 90 | 88 * 90 |
Rated output(KW) | 10.7 | 13.2 | 16.2 | 21.6 |
Rated speed(rpm) | 1800 |
Fuel consumption(g/kw.h) | ≤218 | ≤218 | ≤218 | ≤218 |
Lubricant capacity(L) | 3.5 | 5.5 | 6.7 | 7.4 |
Coolant capacity(L) | 0.9 | 1.8 | 2 | 2.7 |
Cooling method | positive water cooling cycle |
Starting method | D.C. 12V Electric starting |
ALTERNATOR | Model (Stamford) | BCI164B | BCI164C | BCI164D | BCI184E |
Rated power | 8KW | 10KW | 12KW | 16KW |
Rated voltage | 120/240 (208/120; 240/138; 480/277; etc.) |
Rated current(A) | According to the selected voltage and phase |
Rated frequency | 60HZ |
Rated speed(rpm) | 1800 |
Insulation class | H |
Power factor | 1 for single phase / 0.8 lagging for 3-phase |
Phase connection | 1-phase or 3-phase |
Winding connection | 3 or 4 -wire connected (12-wire for 3-phase) |
Excitation method | Brushless |
Voltage regulation | AVR |
CONTROL PANEL | V-meter, A-meter, Frequency meter, circuit breaker, transfer switch, temp.and pressure gauges, indicating lamp, hour meter, key starter, etc. |
