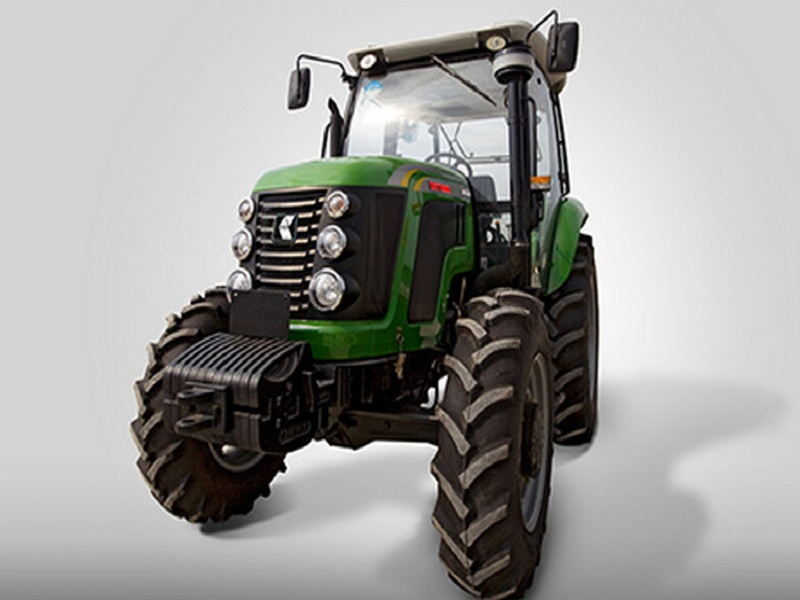

Zoomlion RC950 Tractor

  • Zoomlion
1. Direct injection engine, energy-saving, environmental protection, powerful, large torque reservation, good stability and moretechnologically-advanced.
2. Enhanced chasis, large tractive force, dual power output, powerful and high efficiency.
3.More suitable for variety of fields operation and transportation; low fuel consumption, better performance.
4.Lighter weight, with good sealing,more suitable for paddy field operation.
Enclosed brake, making stable and reliable braking.
5.Double-action clutch, easy operation and reliable.
6.A wide range of agricultural implements. Planetary gear reducer applies higher reduction ratio, high driving strength.
7. Ergonomic design and comfortable riding.
Model RC950
Dive Type 4x2
Overall Demension(L*W*H) (mm) 4382*2083*(2760/2810)
Rated Power(kw) 70
Engine Cylinder 4,Turbo
Rated Traction(kN) 19.3
PTO(r/min) 540/1000
Front Wheel Tread(mm) 1600 1688 1708 1769 1822 1842 1930
Rear Wheel Tread(mm) 1616 1703 1818 1901 2016
Wheelbase(mm) 2192
Min.Ground Clearance 415
Max.Lifting Force(kN) 16
Gearbox 16F+8R

●Standard Configuration
YTO Turbo Engine /16F+8R Creeper Gear/2 Pairs of Hydraulic output/ High Pressure Lifter /Fixed Drawbar/Outer Air Filters/Cabin with Fan
●Optional Configurations
YUCHAI Turbo Engine /QUANCHAI Natural Aspiration Engine/ 16F+8RShuttle Gear/PTO:540/760,760/1000,760/850/Air Brake / Welding Adjustable Drawbar/Swing Drawbar / 360°Rotary Drawbar/ ROPS / Cabin with A/C or Heater / Inner Air Filter/Counterweight (Front and rear)
