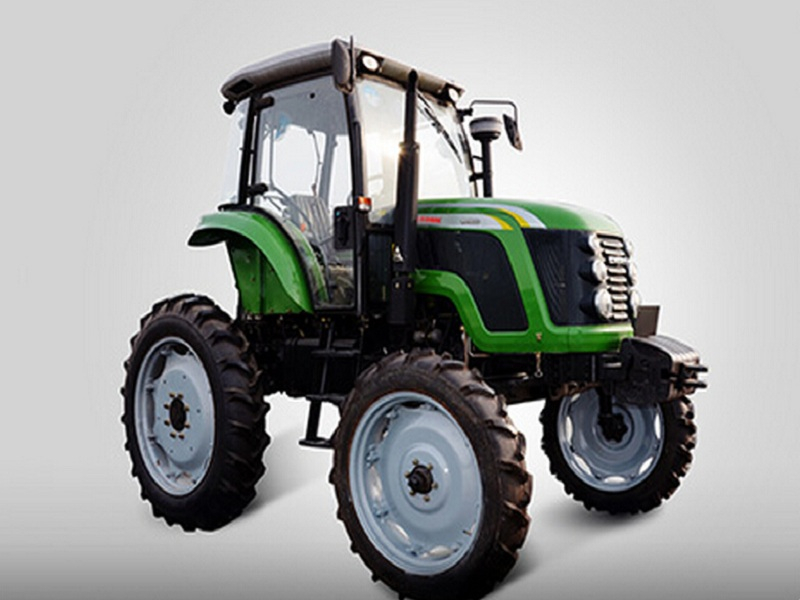

Zoomlion RC950H Tractor

Quantity:
  • Zoomlion

1.Equipped with 4 cylinder engine, direct injection engine, start convenient, low fuel consumption, high traction.
2.With heavy-duty chassis, and high double-speed PTO shaft, works more efficiency.
3.Transmission gears 16F+8R / 8F+4R, good fuel economy in all kinds of farmland homework and transportation.
4.Equipped with the side operation control device and the shift sleeve device, featuring convenient, comfortable, and reliable control.
5.Equipment with the independently-operated double-acting clutch,featuring reliable performance.
6.The hydraulic service brake system and handle-operated parking brake system, featuring safety and reliability.
7.The complete vehicle adopts the optimized ergonomic design to improve the driver’s safety feeling, and the comfort  to control.
8.A new generation of streamline hood, with beautiful and elegant appearance, conforming to the safety, dust-proof, noise-reduction, heat-removal and other performance requirements.
9.Heavy-duty double speed PTO meets variable demands for farm implements and provides high reliability.
10. Optional rear wheelbase steeples adjustment, meets variable farming need.
Model RC900H(High Ground Clearance type)
Dive Type 4x2
Overall Demension(L*W*H) (mm) 4530*2610*3810
Rated Power(kw) 66.2
Engine Cylinder 4
Rated Traction(kN) 17.8
PTO(r/min) 540/1000
Front Wheel Tread(mm) 2360
Rear Wheel Tread(mm) 2280
Wheelbase(mm) 2366
Min.Ground Clearance 790
Agricultural Clearance 850
Max.Lifting Force(kN) 15/20
Gearbox 8F+4R
Tire 9.5-32/12-38

●Standard Configuration
YTO Engine / High Pressure Lifter/Simple Hydraulic Output/Cabin with Fan/Fixed Drawbar/Outer Air Filters
●Optional Configurations
YUCHAI Engine /QUANCHAI Engine/ 16F+8R(Shuttle or Creeper)/High Pressure Lifter/2 Pairs of Hydraulic output / Air Brake / Swing Drawbar / ROPS / Cabin with Fan or A/C or Heater / Counterweight (Front and rear)
