1.Direct injection engine, energy-saving, environmental protection, powerful, large torque reservation, good stability and more technologically-advanced.
2.Enhanced chassis, large tractive force, dual power output, powerful and high efficiency.
3.Applies 8F+2R gear, optional 8F+8R sleeve shuttle shift, more suitable for variety of fields operation and transportation; low fuel consumption, better performance.
4.Lighter weight, with good sealing, more suitable for paddy field operation.
5.Enclosed brakemaking stable and reliable braking.
6.Double-action clutch, easy operation and reliable.
7.A wide range of agricultural implements. Planetary gear reducer applies higher reduction ratio, high driving strength.
8.Ergonomic design and comfortable riding.

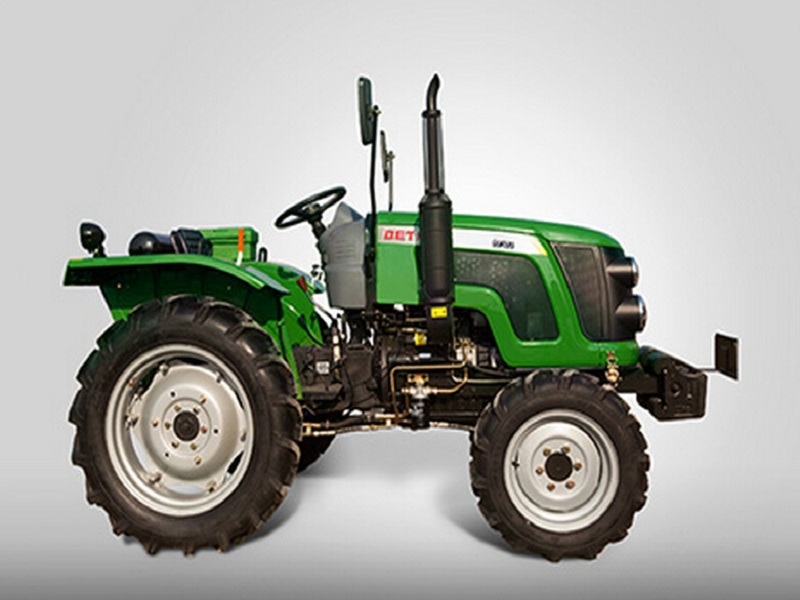

| Model || RF304 |
| Drive Type || 4×4 |
| Overall Demension(L×W×H) (mm) || |
| Rated Power (kw) || 22.1 |
| Engine Cylinder || 3 |
| Rated Traction (kN) || 7.2 |
| PTO r/min || 540/1000 |
| Front Wheel Tread (mm) || 1200 |
| Rear Wheel Tread (mm) || 1100/1200/1300(1200/1300) |
| Wheelbase (mm) || 1739(1847) |
| Min.Ground Clearance || 358(395) |
| Max.Lifting Force (kN) || ≥4.9 |
| Gearbox || 8F+2R(8F+8R) |
| Tire || 6.0-16/9.5-24(6.5-16/11.2-24) |
CHANGCHAI Engine/Single Action Clutch /Simple Hydraulic Output / Fixed Drawbar / Outer Air Filters
Dual Action Clutch / PTO:540/730 / 2 Pairs of Hydraulic output / Air Brake / Swing Drawbar / ROPS / Fixed Cabin(Fan or Heater)/Foldable Cabin(Fan or Heater)/Counterweight (Front and Rear)/4×2
