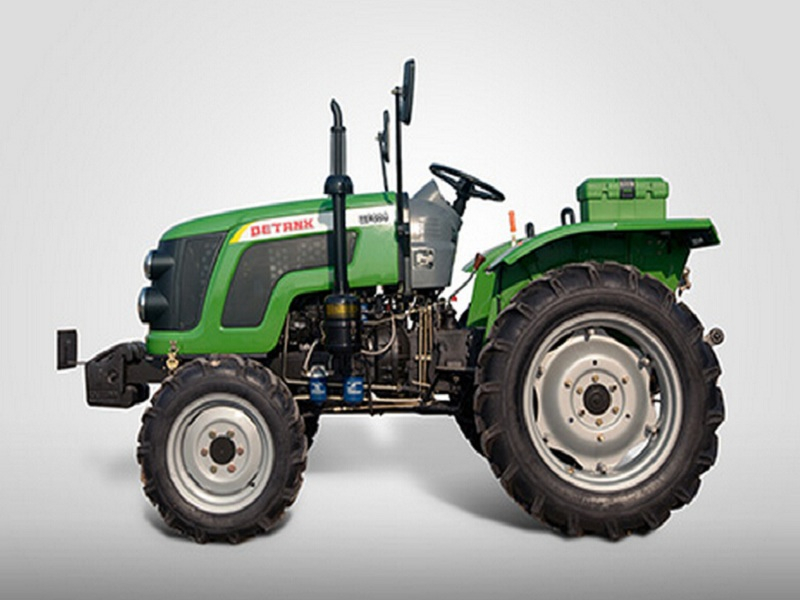

Zoomlion RF404 Tractor

Quantity:
  • Zoomlion

1.Direct injection engine, energy-saving, environmental protection, powerful, large torque reservation, good stability and more technologically-advanced.
2.Enhanced chassis, large tractive force, dual power output, powerful and high efficiency.
3.Applies 8F+2R gear, optional 8F+8R sleeve shuttle shift, more suitable for variety of fields operation and transportation; low fuel consumption, better performance.
4.Lighter weight, with good sealing, more suitable for paddy field operation.
5.Enclosed brakemaking stable and reliable braking.
6.Double-action clutch, easy operation and reliable.
7.A wide range of agricultural implements. planetary gear reducer applies higher reduction ratio,high driving strength.
8.Ergonomic design and comfortable riding.
Model RF404
Drive Type 4×4
Overall Demension(L×W×H) (mm)
3312*1610*2300
Rated Power (kw) 29.5
Engine Cylinder 4
Rated Traction (kN) 10.5
PTO r/min 540/1000
Front Wheel Tread (mm) 1200
Rear Wheel Tread (mm) 1100/1200/1300 (1200/1300)
Wheelbase (mm) 1818 (1926)
Min.Ground Clearance 405
Max.Lifting Force (kN) 6.6
Gearbox 8F+2R (8F+8R)
Tire 7.5-16/12.4-24
●Standard Configuration

CHANGCHAI Engine /Dual Action Clutch / Simple Hydraulic Output / Fixed Drawbar /Outer Air Filters

●Optional Configurations

PTO: 540/730 / 2 Pairs of Hydraulic output / Air Brake / Swing Drawbar / 360°Rotary Drawbar / ROPS/Fixed Cabin (Fan or Heater) / Foldable Cabin (Fan or Heater) / Counterweight(Front and rear)/4×2
