1.Start convenient, low fuel consumption, high traction, high reliability and high coefficient of torque reserve.
2.With heavy-duty chassis, high traction,and high double-speed PTO shaft, it works more efficiency.
3.Transmission featuring reasonable speed-matching，high working efficiency,and good fuel economy.
4.Shift sleeve adopted, featuring convenient, confortable and reliable control.
5.Reinforced dual-speed power take-off, the shift sleeve, featuring the wide range of optional machinery and tools and high reliability.
6.The hydraulic lifter uses the force control, position control, or individual force or position control, featuring convenient operation and reliable performance.
7.A new generation of steamline hood, with beautiful and elegant appearance, conforming to the safety, dust-proof, noise-reduction, heat-removal and other performance requirements.
8.Rear wheelbase can be steeples adjusted, fits for ridge culture.
9.Compacted structure, short wheel base, small turning radius, fits in small land farming.

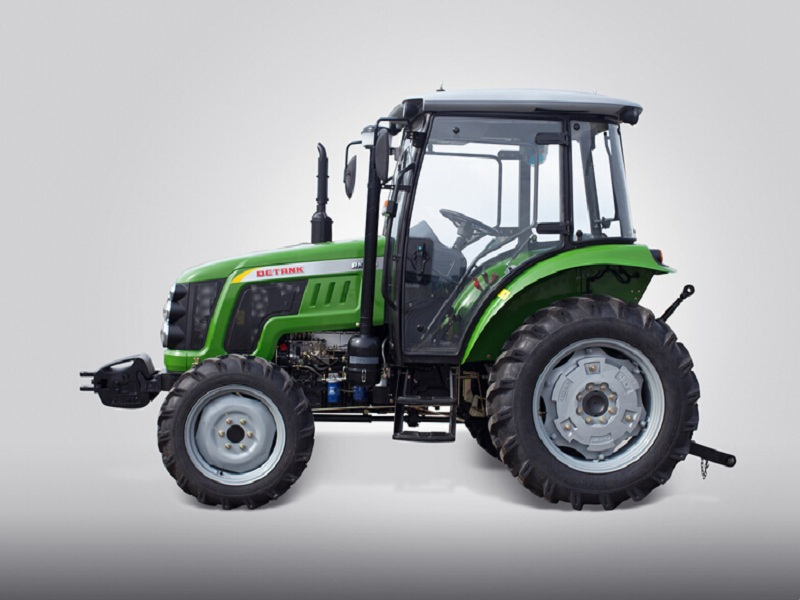

| Model || RK404 |
| Dive Type || 4x4 |
| Overall Demension(L*W*H) (mm) || 3980*1650*2130 |
| Rated Power(kw) || 29.4 |
| Engine Cylinder || 4 |
| Rated Traction(kN) || 10.5 |
| PTO(r/min) || 540/1000 |
| Front Wheel Tread(mm) || 1250 |
| Rear Wheel Tread(mm) || 1200~1500 |
| Wheelbase(mm) || 1990 |
| Min.Ground Clearance || 310 |
| Max.Lifting Force(kN) || 7.4 |
| Gearbox || 12F+12R |
| Tire || 8.3-20/12.4-28 |
XINCHAI Engine / Dual Action Clutch / Simple Hydraulic Output/ Semi-Separation Lifter/ Welding Adjustable Drawbar/ Outer Air Filters / ROPS
QUANCHAI Engine / Single Action Clutch/ 8F+4R/ PTO:540/760
2 Pairs of Hydraulic output / Air Brake / Swing Drawbar / 360°Rotary Drawbar /ROPS / Cabin with Fan or A/C or Heater / Inner Air Filter / Counterweight (Front and rear) /4x2
