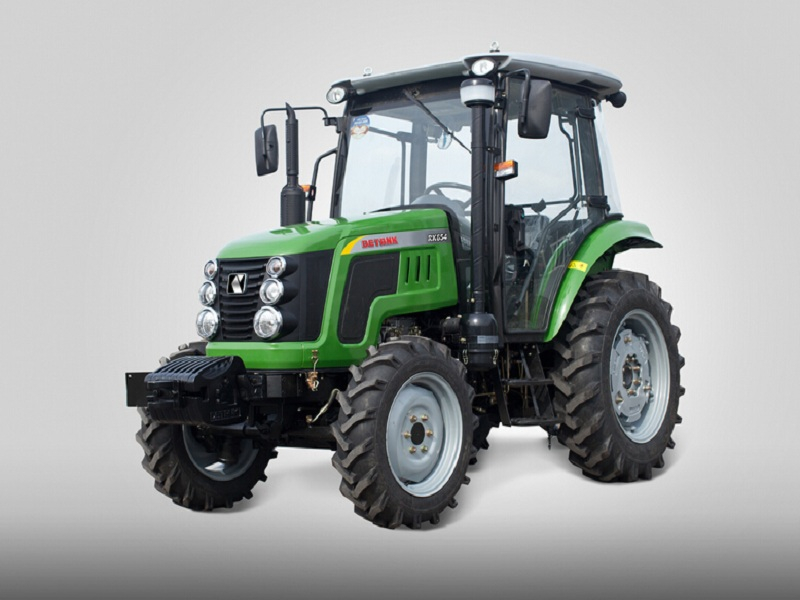

Zoomlion RK654 Tractor

  • Zoomlion
1.Start convenient, low fuel consumption, high traction, high reliability and high coefficient of torque reserve.
2.With heavy-duty chassis, high traction,and high double-speed PTO shaft, it works more efficiency.
3.Transmission featuring reasonable speed-matching,high working efficiency,and good fuel economy.
4.Shift sleeve adopted, featuring convenient, confortable and reliable control.
5.Reinforced dual-speed power take-off, the shift sleeve, featuring the wide range of optional machinery and tools and high reliability.
6.The hydraulic lifter uses the force control, position control, or individual force or position control, featuring  convenient operation and reliable performance.
7.A new generation of steamline hood, with beautiful and elegant appearance, conforming to the safety, dust-proof, noise-reduction, heat-removal and other performance requirements.
8.Rear wheelbase can be steeples adjusted, fits for ridge culture.
9.Compacted structure, short wheel base,  small turning radius, fits in small land farming.
Model RK654
Dive Type 4x4
Overall Demension(L*W*H) (mm) 4030*1650*(2250/2150)
Rated Power(kw) 48
Engine Cylinder 4
Rated Traction(kN) 13
PTO(r/min) 540/1000
Front Wheel Tread(mm) 1250
Rear Wheel Tread(mm) 1312 1350 1408 1496
(Common1350)
Wheelbase(mm) 2070
Min.Ground Clearance 310
Max.Lifting Force(kN) 12
Gearbox 12F+12R
Tire 8.3-20/14.9-28
●Standard Configuration
XINCHAI Engine / Dual Action Clutch / Simple Hydraulic Output/ Semi-Separation Lifter/ Welding Adjustable Drawbar/ Outer Air Filters / ROPS
●Optional Configurations
QUANCHAI Engine / Single Action Clutch/ 8F+4R/ PTO:540/760
2 Pairs of Hydraulic output / Air Brake / Swing Drawbar / 360°Rotary Drawbar /ROPS / Cabin with Fan or A/C or Heater / Inner Air Filter / Counterweight (Front and rear)/4x2
