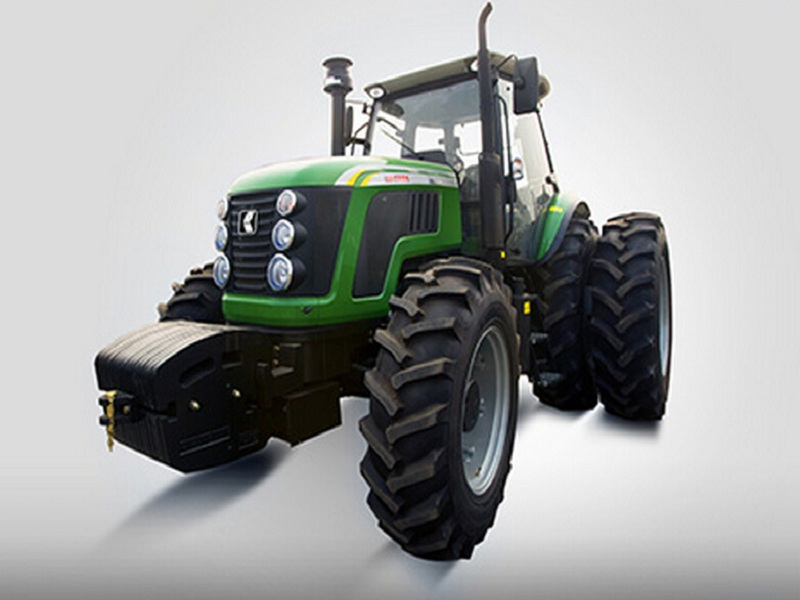

Zoomlion RV1654 Tractor

  • Zoomlion
1.Direct injection engine, start convenient, low fuel consumption, high reliability and high coefficient of torque reserve.
2.With heavy-duty chassis ,high traction, and high double-speed PTO shaft,it works more efficiency.
3.High working efficiency, and good fuel economy in all kinds of farmland homework and transportation.
4.Equipped with the side operation control device and the shift sleeve device, featuring convenient, comfortable,  and reliable control.
5.Reinforced dual-speed power take-off, featuring the wide range of optional machinery and tools and high reliability.
6.The hydraulic service brake system and handle-operated parking brake system, featuring safety and reliability.
7.The complete vehicle adopts the optimized ergonomic design to improve the driver’s safety feeling, and the comfort  to control.
8.A new generation of steamline hood,with beautiful and elegant appearance,conforming to the safety,dust-proof,noise-reduction,heat-removal and other performance requirements.
9.Light and better sealed, give it high performance in paddy field farming.
10.Hydraulic lifting device adopted position control and float control, easy to operate and provides reliable performance.
Model RV1654
Dive Type 4x4
Overall Demension(L*W*H) (mm) 5420*2200(single)/3400(Doube)*3110
Rated Power(kw) 121.3
Engine Cylinder 6,Turbo
Rated Traction(kN) 35
PTO(r/min) 540/1000
Front Wheel Tread(mm) 1900
Rear Wheel Tread(mm) 1850( Single-Tyre)
2330(Dual- Tyre)
Wheelbase(mm) 2760
Min.Ground Clearance 450
Max.Lifting Force(kN) 32
Gearbox 16F+16R
Tire 16.4-28/18.4-42(double)
●Standard Configuration
YUCHAI  Engine /3 Pairs of Hydraulic output/ Fixed Drawbar/ Outer Air Filters/ Cabin with A/C
●Optional Configurations
Cabin with Fan or HeaterCounterweight (Front and rear)/ Welding Adjustable Drawbar/ Swing Drawbar
