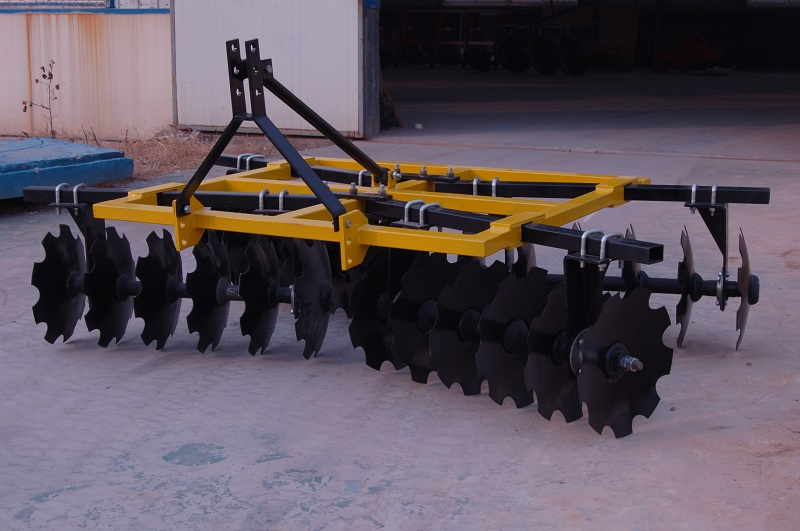

1BQD Opposed Light-duty Disc Harrow

1. With compact structure design;
2. Used for ground breaking-up;
3. Soil lump smashing and crop residues mixing into soil as green manures.
Quantity:
  • 1BQD
  • FOTMA
1BQD Series Light Duty Contrapositive Offset Disc Harrow, with compact structure design, is used for ground breaking-up, soil lump smashing and crop residues mixing into soil as green manures. This series harrows perform excellently in small area that are difficult to harrow and with steep slopes.

Features:

1. 28×28 square harrow shaft used, 165mm spacing between discs;
2. High Carbon disc blade hardness: 38-44 HRC, assuring the toughness and wear ability of disc blade;
3. Compact harrow structure, convenient for assembly and adjustment;
4. High harrowing speed and efficiency when three point mounted with tractor rear;
5. Especially performing well in rugged land with more steep slopes;
6. Harrow’s opposing structure designing facilitates deep and thorough harrowing.




Model                                  1BQD-1.6 1BQD-2.0 1BQD-2.4 1BQD-3.0 1BQD-3.6
Working width(m) 1.6 2.0 2.4 3.0 3.6
Working depth(mm 100-140 100-140 100-140 100-140 100-140
No. of disc 16 20 24 28 36
Disc diameter 18’’ 18’’ 18’’ 18’’ 18’’
Weight(kg) 330 380 440 510 580
Tractor power(hp 30 45 60 60-70 70-80
Lingkage Standard three point mounted
