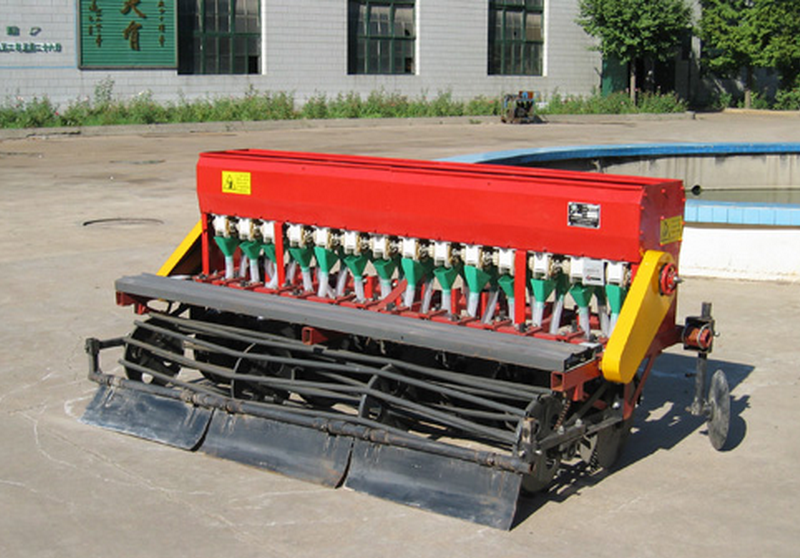

2BFT-14 Grain Drill

1. Applicable to the plains and hills of medium;
2. Suitable for wheat, sorghum, soybean and crops etc;
3. Seeding and chemical fertilizer can work at the same time.
  • 2BFT-14
2BFT-14 Grain Drill applicable to the plains and hills of medium and small plot seeding wheat, sorghum, soybean and crops etc. Seeding and applying chemical fertilizer at the same time. This series of  Grain Drill with 11-13.2 KW wheeled tractor kit, hanging from a three-point suspension and tractor hitch, possesses the advantages of flexible. This series machine use lightweight double disc opener, through sex is good. The machine is installed with empty seed device, covering device and ridging device. Can be done by wheel track, ridging, trenching, applying fertilizer, sow, cover earth at one operation.
Machine model 2BFT-14
Overall dimensions (mm) 1430×2395×1060
Net weight (kg) 265
Width of furrows for sowing width (cm)                                                1800
Sowing depth (mm) 20-60
Seed row number 12
Basic spacing (cm) 150
Opener form Light double disc
Drive way Chain drive
Power (kW) 15-22
Efficiency (hm2 / h) 0.8-.2
Working speed (km/h) 4-6
Maximum rate (kg/hm2) 525
Largest fertilizer rate (kg/hm2) 1050
Volume (L) 82
Fat volume (L) 97
Shipping clearance (mm) 200
