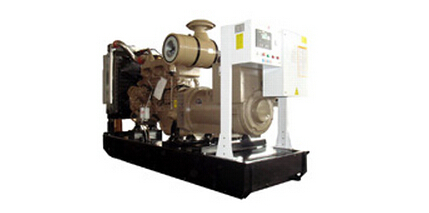

Cummins Series 450-800kw Generator(60HZ)

  • Cummins
Model of Genset GB450C GB500C GB620C GB720C GB800C
Specifications of Generator set Frequency 60HZ
Voltage 480/277V or 208/110V or 240/120V;
Prime output(KW) 450KW 508KW 620KW 725KW 800KW
Standby output(KW) 495KW 550KW 682KW 796KW 880KW
Power factor 0.8 lagging
Phase 3-phase
Engine model KTAA19-G4 KTAA19-G5 KT38-G KTA38-G2 KTA38-G2A
Type  In-line,4Cycle,turbocharged and intercooled V-Type,4Cycle,turbocharged and intercooled
Number of Cylinders 6 6 12 12 12
Bore x Stroke 159 x 159 159 x 159 159 x 159 159 x 159 159 x 159
Displacement (L) 19 19 38 38 38
Engine Speed(rpm/min) 1500
Engine prime power(KW) 452 520 668 765 880
Engine standby power(KW) 539 580 742 880 970
Starting System Electric – 24V DC
Fuel Tank Capacity (L) 1000L BASE FUEL TANK  1500L BASE FUEL TANK
Fuel consumption(L) at full load 140 156 160 184 209
At ¾ Load 105 116 123 141 161
At ½ Load 73 80 87 99 113
Alternator model(Stamford) HCI544E HCI544F HCI534E HCI534F HCI634G
Insulation Class H
Voltage Regulator Automatic
Control panel Manual, AMF as optional
Emergency Stop System Low oil pressure, high water temperature, Over-speed and over load
DIMENSIONS AND WEIGHTS




Open type Dimension(LxWxH)(mm) 3500x1420x2220 3500x1420x2220 4500x1700x2400 4500x1700x2400 4700x1800x2500
Weight(kg) 5000 5500 8000 8500 8800
Silent type Dimension(LxWxH)(mm) 5000x1600x2200 5200x1600x2290 5800x1880x2300 5800x1880x2300 5800x1880x2300
Weight(kg) 5850 6300 8990 9450 9750
