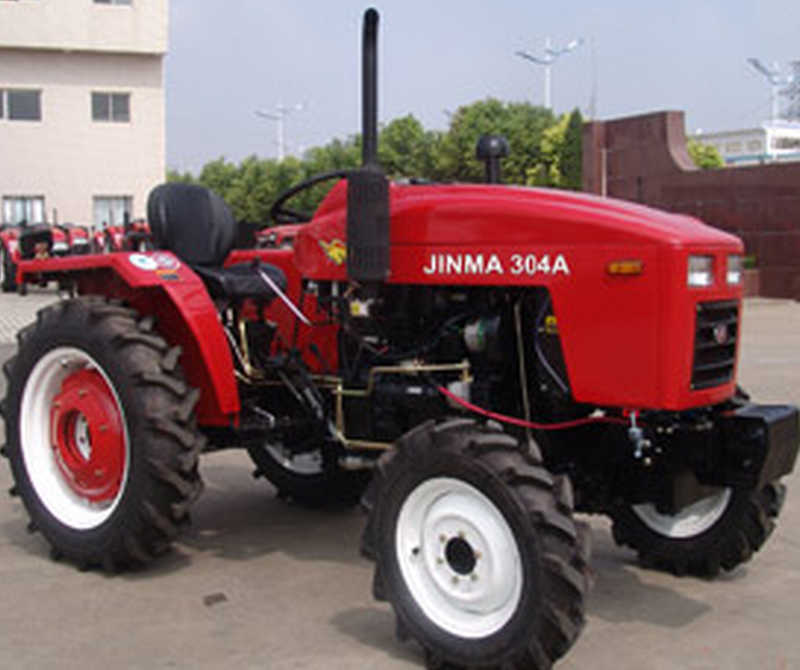

Jinma 304A Tractor

  • Jinma, JM

Tracor
Parameters

Model

JM-304A

Drive Type

4WD

Overall Dimensions L*W*H(mm):

3200x1280x1930

WheelTrack(mm)

Front

1100-1300

Rear

1040-1200

Wheel Base(mm)

1750

Ground Clearance (mm)

295

Rated Traction Force(N)

5980

Construction Mass(kg)

1400

Min.Turning Radius(m)

2.8

Theoretical Speed (With out creeper gear(km/h)

Forward

1.77,2.69,4.23,5.83,8.18,12.46,19.56,26.96

Reverse

2.33/11.25

Engine
Specifications

Model

ZN390T

Type

3-cylinder, Vertical
water-cooled,
4 stroke cycle

Rated Power(kw/hp)

22.1/30

Rated Speed (rpm)

2400

Bore*Stroke(mm)

90*95

Total Displacement(L)

1.813

Drive
System

Clutch

Dual stage

Gear Box

(4+1)*2

Main Drive

One Pair of Spiral Bevel Gearing

Differential

Bevel Gear

Differential Lock

Jaw Lock

Final Transmissions

Spur Gear,External,Gearing

Travelling
Mechanism

Tyre

Front

6.00-16

Rear

9.25-24

Steering Gear

Power Steering

Brake

Disc type

Working
Device

Hydraulic System

Lifting Capacity at 610mm Behind Lift Pioint (N)

5000

3-Point Suspension

Category:I

P.T.O Shaft

Speed (rpm)

540/720 or
540/1000

Spline Size

6-Φ35Rectangular Spline

OPTIONS ROLL BAR,CANOPY,CAB
