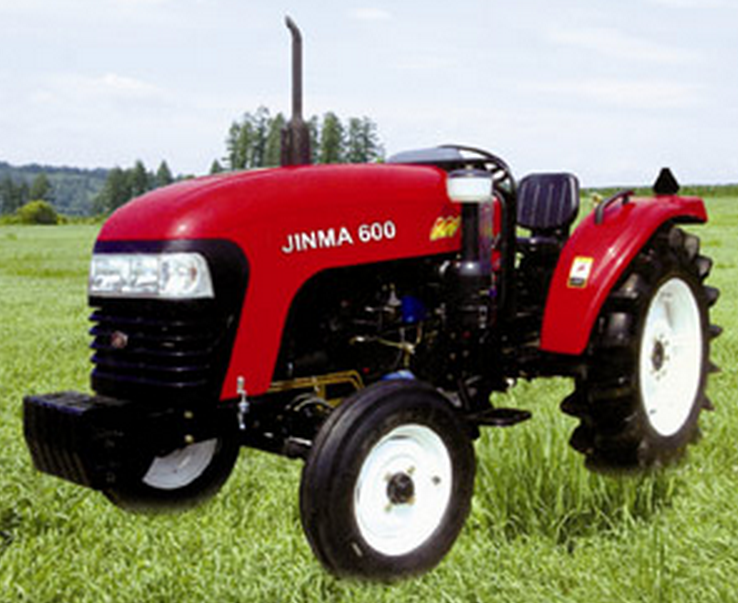

Jinma 600 Tractor

  • Jinma, JM

Tractor
Parameters

Model

JM-600

Drive Type

2WD

Overall Dimensions   L*W*H(mm):

4010*1640*2270

Wheel Track(mm)

Front

1250-1550

Rear

1315-1615

Wheel Base(mm)

2008

Ground Clearance (mm)

390

Rated Traction Force(N)

12300

Construction Mass(kg)

1972

Min.Turning Radius(m)

3.7

Theoretical Speed (With out creeper gear(km/h)

Forward

2.33,3.42,5.57,7.31,10.17,15.38,25.00,32.83

Reverse

3.46,5.08,8.26,10.85

Theoretical Speed (With creeper gear(km/h)

Forward

0.35,0.53,0.83,1.09,1.57,2.3,3.35,4.92

Reverse

0.52,0.76,1.24,1.62

Engine
Specifications

Model

SL4105ABT

Type

4-Cylinder 4-stroke cycle water cooled

Rated Power(kw/hp)

44.1/60

Rated Speed (rpm)

2300

Bore*Stroke(mm)

105*117

Total Displacement(L)

4.05

Drive
System

Clutch

Single-function dry constant meshing

Gear Box

4*(2+1)Sleeve gear shift

Main Drive

One pair of spiral bevel gear

Differential

Bevel gear

Differential Lock

Sliding pin,foot operated

Final Transimission

Planeatry reduction gear

Travelling
Mechanism

Tyre

Front

6.50-16

Rear

13.6-28/12.4-32

Steering Gear

Hydraulic steering

Brake

Oil immerszd multiplate disc

Working
Device

Hydraulic System

Lifting Capacity at 610mm Behind Lift Pioint (N)

9900

3-Point Suspension

Category:II

P.T.O
Shaft

Rotating
Speed (rpm)

540/1000
Or 540/1000

Spline Size

6-Φ35Rectangular Spline

OPTIONS SAFETY FRAME,CANOPY,CREEPER,SHUTTLE,SYNCHRONISED GEAR,CAB
