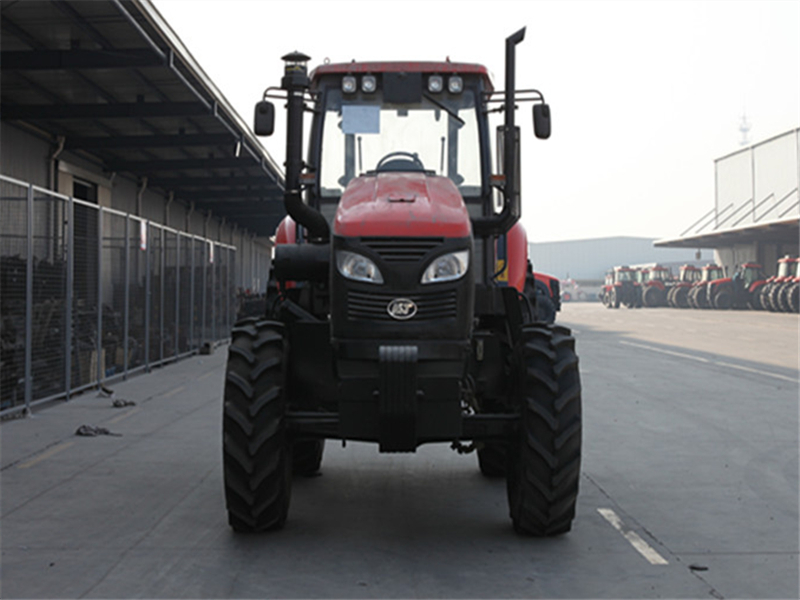

KAT 1254 tractor

1. Weichai Deutz six cylinder engine(turbocharger、intercooling)
2. Fully enclosed cab, air conditioner, air heater
3. 16+4 shifts of transmission, shifting synchronizer, integrated frame
4. Driving system with modularized structure
5. CARRARO front axle,construction machinery rear axle
6. Caliper disc brake, replaceable power output shaft

  • KAT 1254
  • KAT
  • 87019110
Weichai Deutz six cylinder engine(turbocharger、intercooling) is designed with 12 hours rated power(91kw), fully enclosed cab, air conditioner, air heater, 16+4 shifts of transmission, shifting synchronizer, integrated frame, driving system with modularized structure,CARRARO front axle,construction machinery rear axle, caliper disc brake, replaceable power output shaft, revolution for power output shaft of dual revolution 540/1000r/min, fully hydraulic front wheel steering, two groups of hydraulic output, plough depth control method by position, floating control, and suspension mechanism of rear-mounted Category II.
Model
KAT1254
Engine

Power/speed kW/r/min 92(125)/2100
Specific Fuel Consumption g/kw.h ≤230
Drive Type    / 4×4
Dimension(Length/Width/Height) mm 5410/2305/3120
Wheel Base mm 2790
Track(Front wheel) mm 1846-2148
Track(Rear wheel) mm 1838-2142
Min. Ground Clearance mm 450
Min.running weight kg 6240
Front counter weight kg 300
Rated Traction Force kN 31
No. of gear
14F+7R
Forward Gear Speed km/h 2-30
Reverse Gear Speed km/h 2-20
Type Model

Front Tires    / 14.9-26
Rear Tires    / 18.4-38
Power-output shaft Type    / Rear position or independent
power-output shaftRated Speed r/min 540/1000
Max. Pull-down piston pull kN 31
