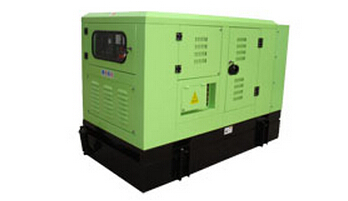

New Holland Series 10-15kw Generator

  • New Holland
MODEL OF GEN-SET GB10SNH GB12SNH GB15SNH
DIESEL ENGINE Model 295AD 2100AD 395AD
Type Four-stocke,water-cooling,vertical
Nb. of cylinder 2 2 3
Bore*Stroke(mm) 95*115 85*90 85*90
Ttl.Displacement(L) 1.63 1.532 2.043
Compression ratio 16.5:1
Air intake mode naturally-aspriated
Rated output(KW) 16.5 KW 18 KW 24.8KW
Rated speed(rpm) 1500
Fuelconsumption(g/kw.h) ≤267.9 ≤267.9 ≤267.9
Oil consumption(g/kw.h) 2.72 2.72 2.72
Cooling method water-cooled with radiator
Starting method D.C.12V or 24V Electric starting
ALTERNATOR Model TF(D)W-10KW-4P TF(D)W-15KW-4P TF(D)W-15KW-4P
Rated power 10KW 12KW 15KW
Rated voltage 220V, 380/220V, …/120/240V, 208/120V…
Rated current 41.6A/83.3A 50A/100A 62.5A/125A
Rated frequency 50HZ/60Hz
Rated speed(rpm) 1500/1800
Power factor 1 for single phase/0.8 lagging for 3-phase
Phase connection single phase or three phase
Winding connection 3 or 4 -wire connected(12-wire for 3-phase)
Excitation method Brushless
Voltage regulation AVR
CONTROL PANEL V-meter,A-meter,Frequency meter , circuit breaker,transfer switch,AVR, temp. and pressure gauges, lighter,hour meter,engine protection device, key starter, etc.
G/N. WET(kg) 580/520 610/550 750/690
PACKING SIZE(cm) 185*96*110 185*96*110 196*85*102
