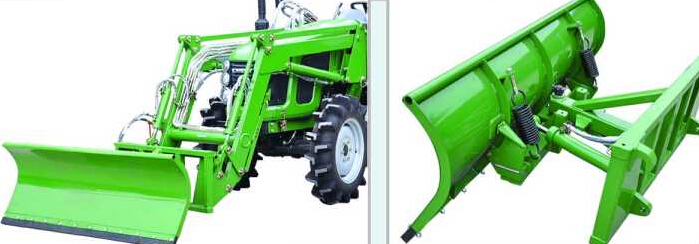

TZ Snow Blade For Front End Loader

1. Good quality snow blade;
2. Snow blade is fitted with front end loader.

Model:
  • FOTMA
Model TX150-TZ         TX165-TZ         TX180-TZ         TX210-TZ         TX230-TZ         TX260-TZ
Adapted Front Loader Model TZ02D TZ03D TZ04D TZ08D TZ10D TZ12D
TZ03D TZ04D TZ06D TZ10D TZ12D TZ16D
Blade Width (Overall width)(mm) 1500 1650 1800 2100 2300 2600
Blade Height (mm) 660 660 660 700 700 700
L/R Swing Angle            Mechanical Type (standard )             0° / ±16° / ±30。
 Hydraulic Type (option ) -26。〜26。
 Cutting Width 30° Angle 1300 1430 1560 1820 2000 2250
26° Angle 1350 1500 1620 1890 2070 2340
 Horizontal Tilting Angle -5。〜5。
