FOTMA

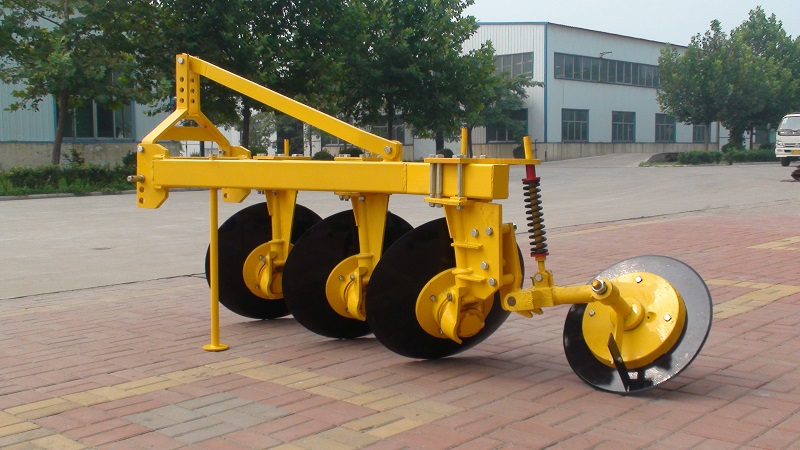

The disc plow is used for tillage on dry cultivated or fallow land, especially on high yield’s manure and virgin land. Good passability and penetration, complete inversion and coverage. Small draft resistance. easy operation and adjustment All these satisfy the agricultural requirements of fine cultivation.
| Model | unit | 1LYQ-220 | 1LYQ-315 | 1LYQ-320 | 1LY-325 | 1LY-330 | 1LY-425 | 1LY-525 | 1LY-625 |
| Working width | m | 0.4 | 0.45 | 0.6 | 0.75 | 0.90 | 1.0 | 1.25 | 1.5 |
| Working depth | mm | 200 | 180 | 200 | 250 | 300 | 250 | 250 | 250 |
| Diameter of disc | mm | 510 | 460 | 510 | 660 | 710 | 660 | 660 | 660 |
| Q’ty of disc | | 2 | 3 | 3 | 3 | 3 | 4 | 5 | 6 |
| Total Weight | kg | 200 | 210 | 220 | 450 | 510 | 510 | 600 | 650 |
| Matched power | hp | ≥18 | ≥25 | 25~40 | ≥50 | 70 | 80~100 | 100~120 | 120~160 |
| Linkage | | Standard three-point mounted | |||||||
The disc plow is used for tillage on dry cultivated or fallow land, especially on high yield’s manure and virgin land. Good passability and penetration, complete inversion and coverage. Small draft resistance. easy operation and adjustment All these satisfy the agricultural requirements of fine cultivation.
| Model | unit | 1LYQ-220 | 1LYQ-315 | 1LYQ-320 | 1LY-325 | 1LY-330 | 1LY-425 | 1LY-525 | 1LY-625 |
| Working width | m | 0.4 | 0.45 | 0.6 | 0.75 | 0.90 | 1.0 | 1.25 | 1.5 |
| Working depth | mm | 200 | 180 | 200 | 250 | 300 | 250 | 250 | 250 |
| Diameter of disc | mm | 510 | 460 | 510 | 660 | 710 | 660 | 660 | 660 |
| Q’ty of disc | | 2 | 3 | 3 | 3 | 3 | 4 | 5 | 6 |
| Total Weight | kg | 200 | 210 | 220 | 450 | 510 | 510 | 600 | 650 |
| Matched power | hp | ≥18 | ≥25 | 25~40 | ≥50 | 70 | 80~100 | 100~120 | 120~160 |
| Linkage | | Standard three-point mounted | |||||||
