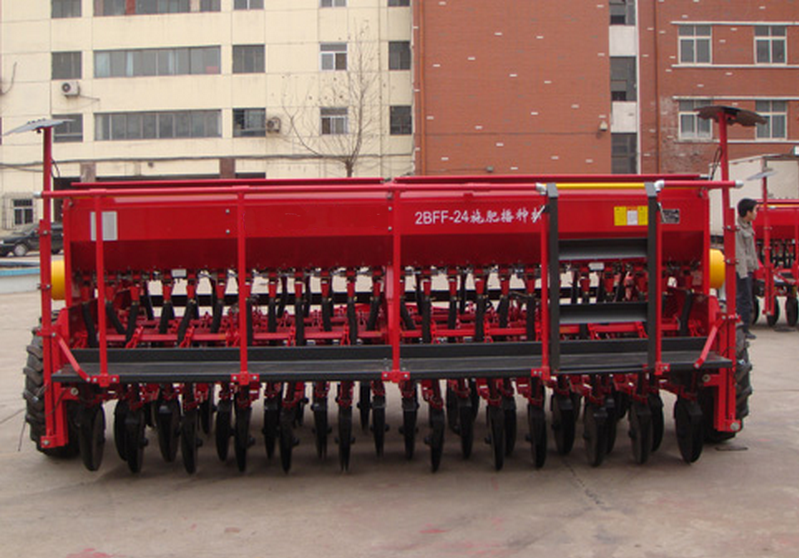

2BFSF-24 Grain Drill Seeder Machine

The seeder for traction machine, and above 55 HP tractor kit, can be a complete job applying fertilizer, sow, cover earth, etc. This machine is mainly used for seeding wheat, millet, also can adjust the spacing sowing sorghum, soybeans and other crops.
Quantity:
  • 2BFSF-24

  • FOTMA

The seeder for traction machine, and above 55 HP tractor kit, can be a complete job applying fertilizer, sow, cover earth, etc. This machine is mainly used for seeding wheat, millet, also can adjust the spacing sowing sorghum, soybeans and other crops.

Features:
1. The hydraulic control of lifting and pulling depth adjustment, convenient operation, saves labor;
2. The opener for steel structure, high intensity, opener disc sealing performance is good, long service life. Equipped with extension tube, depth of 1 ~ 2 cm, used for sowing crops of rapeseed;
3. The rubber wheel drive, transportation fast, high operating speed;
4. The independent control hydraulic elevator marker, convenient, easy to use;
5. Kinds of maps, turns the soil repression, once completed, to improve efficiency;
6. Optional drip irrigation belt, roller parts;
7. MuBoLiang wide adjustment range from 0.5 to 50 kg/mu;
8. To add large seed manure box, reducing The Times for add seed manure to increase productivity.
Job dimensions (cm) :                                                                                             464×736×170
Transport dimension (cm) : 464×438×170
Structure mass (kg) : 2200 + 450(The attachment roller)
Working width (cm) : 360
Sowing depth (mm) : 30~80
Total number of rows (basic) : 44
Power (kW) : 40.4~88.2
Kind of tank volume (L) : 660
Fertilizer box volume (L) : 660
Pure working hour rate (hm2 / h) : 2.16~3.6
Height from the ground (mm) : ≥150
Opener form: Double bearing double disc type
Row of seed manure machine form: Iron outside slot round
Basic spacing (mm) : 75(adjustable)
Connected to the tractor form: traction
The clutch structure: Tooth clutch
Lifting mechanism type: The hydraulic
Wheel form: Rubber inflatable tire
Column spacing before and after the opener (mm) : 260/680/260
Driving mode: Chain transmission
