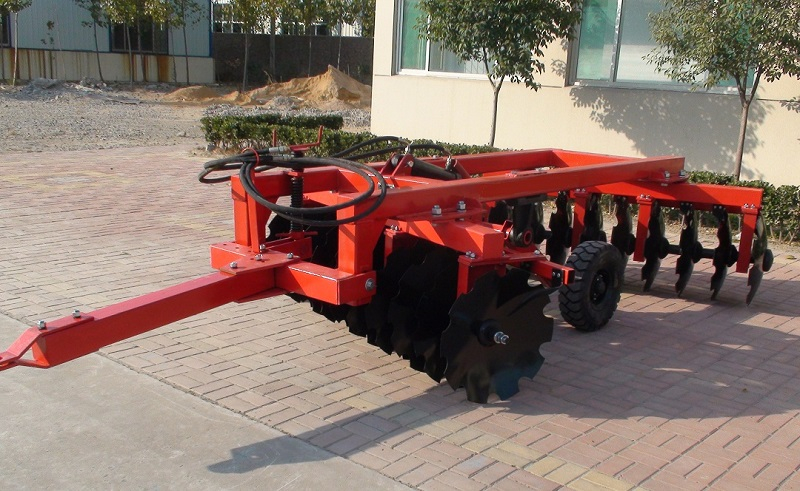

BZ Hydraulic Automatic Heavy-duty Disc Harrow

1. High resistible, heat treated discs notched at front and plain at rear or alternated;
2. Transport tyres also ensure optimum working depth control;
3. Ease and speed of set up into the work/transport position.
Quantity:
  • BZ

  • FOTMA

1. High resistible, heat treated discs notched at front and plain at rear or alternated;
2. Transport tyres also ensure optimum working depth control;
3. Ease and speed of set up into the work/transport position;
4. Easy gang angling adjustment with locking device standard manual or hydraulic(Optional);
5. Increased inter-disc spacing and disc scrapers preventing trash built up;
6. Hydraulic folding to reduce the transport width for easy and safe transportation;
7. Spacers and bearing housings made from Steel for trouble free long working life.
Model Unit BZ-2.0 BZ-2.2 BZ-2.5
No. of discs / 20 22 24
Disc diameter mm 610/660 610/660 610/660
Disc spacing mm 23 23 23
Working depth mm 20 20 20
Weight kg 1980 2100 2290
Fitted power hp 70-80 80-90 100-110
