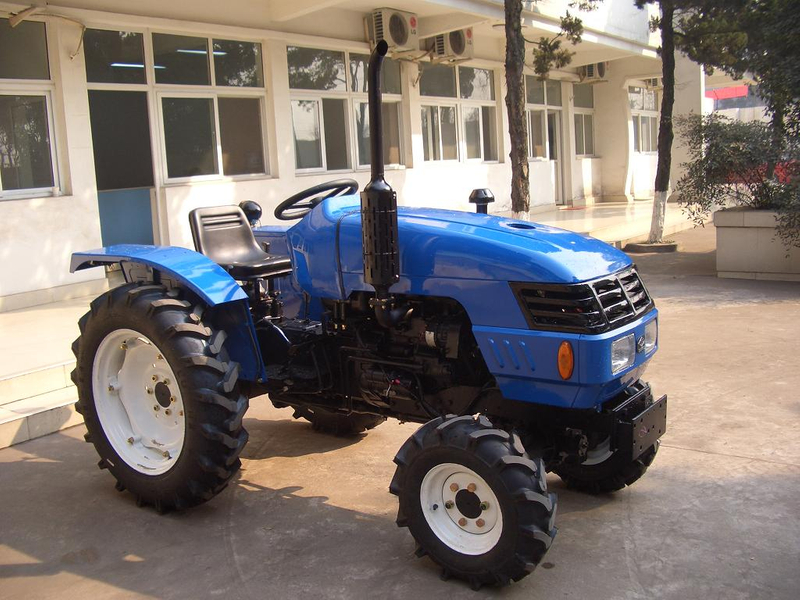

Dongfeng, DF
| Tractor Parameters | Model | DF-204 | |
| Drive Type | 4×4 4WD | ||
| Overall Dimensions L×W×H（mm）: | 2661×1158×1910 | ||
| Wheel Track（mm） | Front | 952 | |
| Rear | 1020,1120,1220,1320 | ||
| Wheel Base（mm） | 1524 | ||
| Ground Clearance（mm） | 290 | ||
| Rated Traction Force（N） | In Paddy Fields | 3920 | |
| In Dry Fields | 5880 | ||
| Construction Mass（kg） | 1190 | ||
| Min. Turning Radius（m） | 2.20 | ||
| Theoretical(km/h) | Forward | 1.12,1.49,2.89,4.81,5.79,7.74,14.96,24.94 | |
| Reverse | 1.31,6.8 | ||
| Engine Specifications | Model | KM380BT | |
| Type | 3-cylinder,Upright inline cylinder, radiator cooling,4-storke cycle, | ||
| 12-hour Rated Power(kW/hp) | 15.6/21.2 | ||
| 1-hour Rated Power(kW/hp) | 18.0/24.5 | ||
| Rated Speed（rpm） | 2400 | ||
| Bore ×Stroke（mm） | 80×90 | ||
| Total Displacement（L） | 1.36 | ||
| Drive System | Clutch | Single friction disc, dry and constant meshing | |
| Gear Box | (4+1)×2，planar 3-shaft for main transmission, epicyclic gearing for Hi-lo speed range-transmission | ||
| Main Drive | One Pair of Spiral Bevel Gears | ||
| Differential | Bevel Gear | ||
| Differential Lock | Jaw Lock | ||
| Final Transmissions | Spur Gear, External Gearing | ||
| Traveling Mechanism | Tire | Front | 6.00-12（Herringbone Pattern） |
| Rear | 9.5-24（Herringbone Pattern） | ||
| Steering Gear | Spherical worm roller type | ||
| Brake | Sealed Shoe | ||
| Working Device | Hydraulic System | Lifting Capacity at 610 mm Behind Lift Point（N） | 4230N |
| 3-Point Suspension | Category: 0 | ||
| P.T.O. Shaft | Rotating Speed（rpm） | 540/730 | |
| Spline Size | 6-ф35 Rectangular Spline | ||
