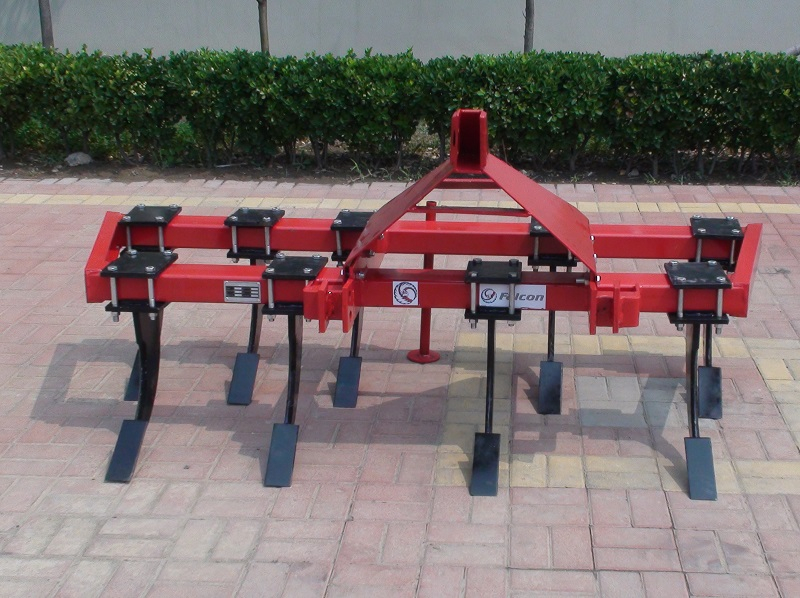

FM3S Subsoiler

1. Suitable for subsoiling the field of potato, beans, cotton and so forth;
2. It can break surface soil harden, loosen soil, retain water understand, and clean stubble.
  • FM3S


The subsoilers are deep tillage implements specially designed for breaking up hard pan payers and loosening the subsoil allowing better drainage, root growth and mineral osmosis. The subsoilers ashatters the soil well below the surface, thus increasing the water holding capacity. The subsoilers preserves moisture during high rainfall which is very important for the crop to withstand low rainfall or drought.

It is mainly suitable for subsoiling the field of potato, beans, cotton and can break surface soil harden, loosen soil, retain water understand, and clean stubble. It has advantages of adjustable depth, wide range of applying, convenient suspension and so on.
1. The Subsoilers can plough up to 25 c.m. deep .
2. The Subsoilers fights draught by increasing the ground storage capacity.
3. The Subsoilers  increases soil turnover by reaching deeper organic matter layers.
4. The ploughing width is adjustable.

Model                                     FM3S-1.0 FM3S-1.4 FM3S-1.8 FM3S-2.1 FM3S-2.6
Working width(m) 1000 1400 1800 2100 2600
No. of legs 5 7 9 11 13
Working depth(mm) 100-240
Total weight(kg) 240 280 320 370 450
Matched power(hp) 25 40 50-60 70-80 80-100
