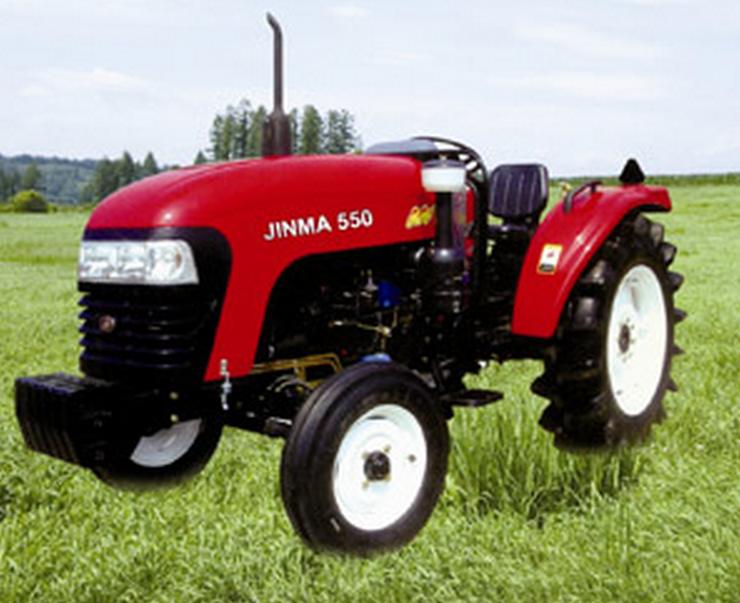

Jinma 550 Tractor

Tracor
Parameters

Model

JM-550

Drive Type

2WD

Overall Dimensions   L*W*H(mm):

4010*1640*2220

Wheel Track  (mm)

Front

1250-1550

Rear

1315-1615

Wheel Base(mm)

2008

Ground Clearance (mm)

370

Rated Traction Force(N)

11500

Construction Mass(kg)

1946

Min.Turning Radius(m)

3.6

Theoretical Speed (With out creeper gear(km/h)

Forward

2.243,3.293,5.355,7.031,
10.070,14.793,24.049,31.579

Reverse

0.336,0.493,0.802,1.053,
1.508,2.214,3.600,4.725

Theoretical Speed (With creeper gear(km/h)

Forward

3.327,4.888,7.945,10.433

Reverse

0.500,0.732,1.190,1.562

Engine
Specifications

Model

SL4105BT

Type

4-Cylinder 4-stroke cycle water cooled

Rated Power(kw/hp)

40.4/55

Rated Speed (rpm)

2300

Bore*Stroke(mm)

105*110

Total Displacement(L)

3.81

Drive
System

Clutch

Single-function dry constant meshing

Gear Box

4*(2+1)Sleeve gear shift

Main Drive

One pair of spiral bevel gear

Differential

Bevel gear

Differential Lock

Sliding pin,foot operated

Final Transmission

Planeatry reduction gear

Travelling
Mechanism

Tyre

Front

6.00-16

Rear

12.4-28/13.6-28

Steering Gear

Hydraulic steering

Brake

Oil immerszd multiplate disc

Working
Device

Hydraulic System

Lifting Capacity at 610mm Behind Lift Pioint (N)

9100

3-Point Suspension

Category:II

P.T.O
Shaft

Rotating
Speed (rpm)

540/1000
Or 540/1000

Spline Size

6-Φ35Rectangular Spline
