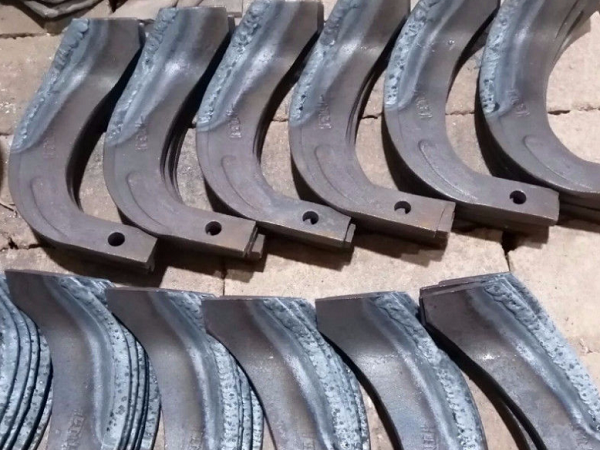

Specifications of Rotary Tiller's Cutting Blades

Many farmers mistakenly believe that "the longer the better" when replacing blades, only to find they can't be installed or cause the tractor to veer off course during tilling. In fact, there is no so-called "standard uniform length" for rotary tiller blades—they entirely depend on your tiller model, working width, and target depth. Understanding the underlying selection logic is far more effective than memorizing a fixed number.

I. Reference for Blade Sizes of Common General-Purpose Models

In practical agricultural production, the most widely used rotary tillers are the universal type compatible with 100-150 horsepower tractors (such as the common 4ZT series). The blade lengths of such equipment typically fall into two ranges:

(1) Standard working width: For rotary tillers with a width of approximately 2.0 to 2.3 meters, the blade length typically ranges between 35 and 40 centimeters. This is the most commonly used specification for most small to medium-sized plots, such as the 4ZT-230 model, which has a blade length of about 38 centimeters.

(2) Deep Plowing Requirements: If the plowing depth needs to exceed 20 centimeters or the soil resistance is significant, the blade length typically needs to be increased to 45 to 50 centimeters. This is because a longer blade provides a greater cutting angle and cutting area, ensuring smooth plowing even in hard soil conditions.

Note: These are only common reference values, and there may be a few centimeters of deviation due to design differences among manufacturers. When purchasing replacement parts, the primary task is to measure the length of the old blade rather than directly applying the model number.

II. Core variable determining blade length

Why can't it be unified nationwide? Because the blade length is determined by two key parameters: working width and plowing depth.

(1) The working width determines the quantity and indirectly affects the structure: the wider the rotary tiller, the more blades it requires. In order to maintain center of gravity balance and even force distribution on the transmission shaft, the blade layout of wide width machines will be denser, but the length of a single blade does not necessarily increase linearly with width, but is limited by the height of the frame.

(2) The depth of cultivation determines the upper limit of length: this is the most direct physical limitation. For every 1 centimeter increase in plowing depth, the effective cutting length of the blade usually needs to be increased by 2-3 centimeters to ensure sufficient grass removal capacity and soil crushing effect. If the blade is too short and the plowing depth is too deep, it will cause excessive stubble on the ground and even damage the ground.

(3) Tractor power matching: High horsepower tractors (such as 180 horsepower or more) are equipped with wide width rotary tillers, and their blade lengths often exceed 50 centimeters. But if a small horsepower tractor forcefully uses extra long blades, it can cause excessive engine load, decreased RPM, and even damage to the gearbox.

Empirical judgment method: If your current rotary tiller can cultivate land normally and has good soil crushing effect, the length error of the newly purchased blade should not exceed ± 2 centimeters. Excessive length will increase the moment of inertia and cause significant impact on the bearings; If it is too short, it will affect the stability of tillage depth.

III. Guidelines and selection suggestions for avoiding pitfalls

When choosing blades, in addition to length, there are several key points that are easily overlooked. Choosing the wrong one will also result in failure to use or shorten the lifespan.

(1) The diameter of the shaft hole must be consistent: this is the most easily overlooked hard indicator. Common shaft holes include 25mm, 30mm, 32mm, etc. Even if the length is correct, the hole cannot be installed. Be sure to measure the diameter of the center hole of the original blade with a caliper.

(2) The installation angle cannot be reversed: the blade is divided into left and right directions, and the edge orientation must be consistent. When installing, the bending direction of all blades should form a continuous spiral shape, so that the soil can be thrown to one side and chopped. Reverse installation can lead to severe soil pushing and a significant increase in energy consumption.

(3) Material selection depends on toughness: Domestic high-quality blades are mostly forged from 65Mn spring steel or 55Si2Mn alloy steel. Do not be tempted to buy cast iron or inferior forged parts at a low price. These types of blades are brittle and easily break when encountering rocks, making it very dangerous for fragments to fly out.

In general, when choosing a blade, remember the nine character formula of "measuring old length, measuring aperture, and looking at power", and do not blindly pursue elongation, in order to be both labor-saving and safe.
