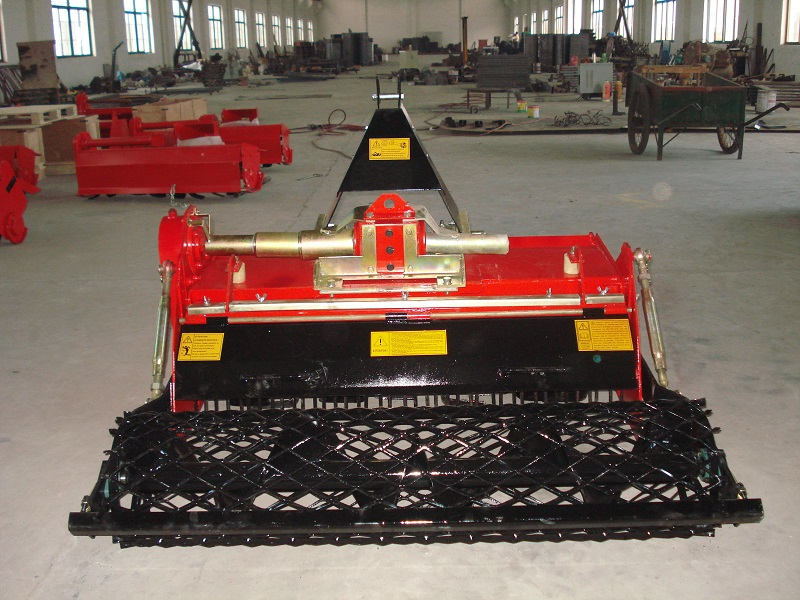

Heavy Duty Rotary Tiller

Quantity:
  • FOTMA

  • Multispeed Gearbox 540 rpm PTO
  • Side gear drive in oil bath
  • Universal three point hitch, cat. I & cat. II^
  • 6 blades per flange (side blades are always mounted inwards)
  • «CE» safety guards
  • 1GN HEAVY DUTY SERIES ROTARY TILLER
    Model                    1GN180H 1GN205H 1GN230H
    Working width(mm)                               1800 205 230
    Weight(kg)                     460 490 520
    Number of flanges                 7 8 9
    Number of blades 42 48 54
    Number of blades per flange                                 6(Optional 4)
    Hitch type                               Standard three point hitch
    Gearbox lubrication           SAE 90 oil
    Rotor diameter                  18''
    Rotor shaft speed               209 rpm at 540 rpm PTO
    Recommended maximum PTO power(kw)                      36.8-48.0 44.1-55.2 54.5-66
    Dimentions(LxWxH mm)     2020X760X1070 2270X760X1070 2520X760X1070
    POWER REQUIRED            50-65hp 60-75hp 70-90hp
