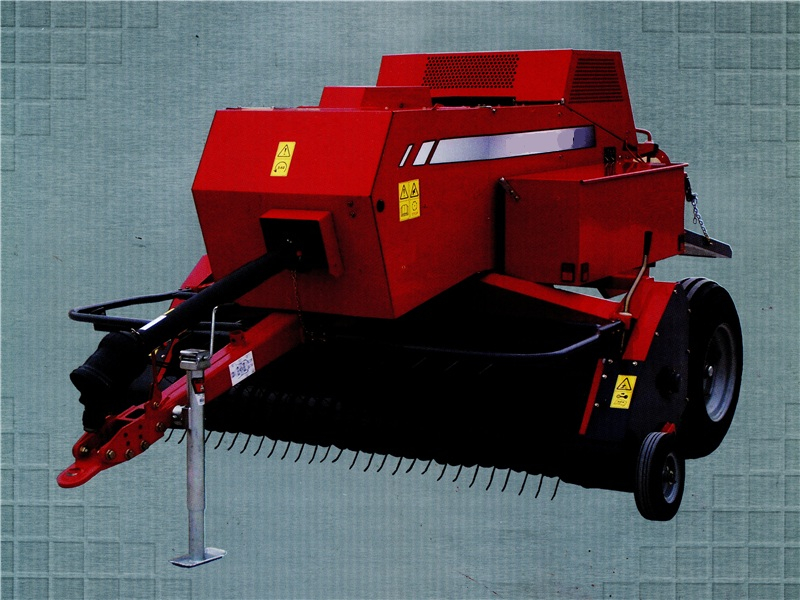

1839XC Baler

1. Big hay baler;
2. New hay baler.
Quantity:
  • 1839XC

  • FOTMA

Model                                                                            1839 baler
Weight 1497kgs
Dimension without bale chute 4267x2565x1651mm
Dimension with bale chute 5182x2565x1651mm
Dimension without bale thrower 6096x2565x1651mm
Pickup width tine to tine 1782mm
Inside panel to panel 1928mm
Outside panel to panel 2264mm
Number of tines bars 4 pcs
Number of tines 112pcs
Length of stroke 550mm
Tying mechanism Knotters
Protection Shear bolt
Min. horsepower 26kw
PTO speed 540rpm
