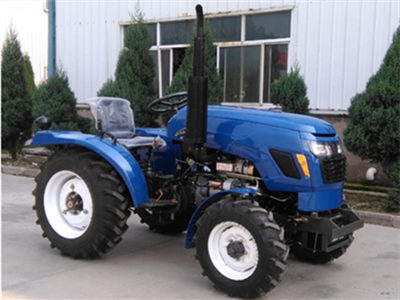

FM204/FM224/FM244//FM254/FM304
FOTMA
| Model | FM204 | FM224 | FM244/254 | FM220 |
| Type | 4*4 | 4*4 | 4*4 | 4*4 |
| Rated Tractive Force(kN) | 4.7 | 5.4 | 6.2 | 7.5 |
| Overall Dimensions(L*W*H)(mm) | 2580*1200*1885 | 2580*1200*1885 | 2950*1250*1980 | 2950*1250*1980 |
| Structural Mass(kg) | 1050 | 1050 | 1200 | 1200 |
| Min. Operating Mass(kg) | 1170 | 1170 | 1320 | 1320 |
| Wheelbase(mm) | 1560 | 1560 | 1690 | 1700 |
| Wheel Tread(mm) | 950/990 | 950/990 | 990/1020 | 990/1020 |
| Min. Ground Clearance(mm) | 245 | 245 | 235 | 235 |
| Min. Turning Radius(m) | 4.2 | 4.2 | 4.5 | 4.5 |
| Speed(km/h) | 2.84-29.35 | 2.84-29.35 | 1.92-29.41 | 2.21-31.76 |
| Hitch Linkage | I category, rear mounted, three point suspension | |||
| PTO Shaft Type | Dependent, clockwise, 540rpm, 6 spline Φ35mm | |||
| Tire | 6.00-14/7.50-20 | 4.00-12/7.50-16 | 6.00-16/8.30-24 | 6.00-16/9.50-24 |
| Engine Model | KM380 | TY295/KM380 | TY2100/KM385 | TY2102/JDM390 |
| Engine Typre | Two/three cylinder, vertical, water cooled, 4 stroke | |||
| 12-hour Rated Power(kw) | 14.7 | 16.2 | 17.6/18.4 | 22.1 |
| Rotate Speed(r/min) | 2300 | 2300 | 2300 | 2400 |
| Starting Method | Electric start | Electric start | Electric start | Electric start |
| BorexStroke(mm) | 95x105 | 95X105 | 100X105 | 102x105 |
| Fuel Oil Consumption(g/kw*h) | ≤250 | ≤250 | ≤250 | ≤250 |
| Displacement(L) | 1.096 | 1.49 | 1.65 | 1.71 |
