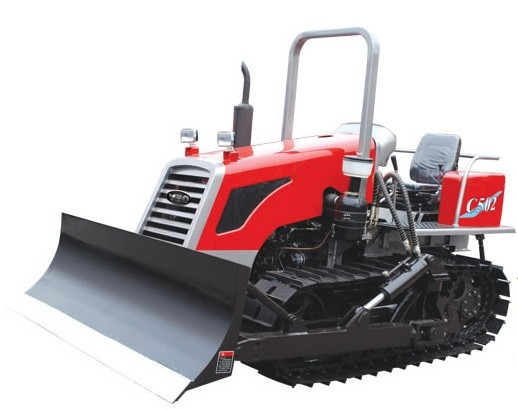

40-60HP Crawler Tractor
The diesel engine of the 40-60HP crawler tractor is produced based on the British technology. So our product features large torque, powerful overload capacity, low fuel consumption, and environment protection. Beside, this chain track tractor is well received by virtue of the following characteristics.
1. The (2+1)×4 compound gearbox with shift sleeve is provided with multiple gears, resulting in convenient operation and wide application.
2. The main clutch for agricultural crawler tractor is a kind of normally closed wet clutch with single disc and spring compressor. So, the operation of the 40-60HP crawler tractor is quite convenient.
3. Additionally, the friction plate of the dry multi-disc steering clutch is made of new material with good durability. The floating band brake has excellent brake performance.
4. The crawler tractor with shovel uses semi-rigid suspension system for outstanding bulldozing performance.
40-60HP Crawler Tractor
The diesel engine of the 40-60HP crawler tractor is produced based on the British technology. So our product features large torque, powerful overload capacity, low fuel consumption, and environment protection. Beside, this chain track tractor is well received by virtue of the following characteristics.
1. The (2+1)×4 compound gearbox with shift sleeve is provided with multiple gears, resulting in convenient operation and wide application.
2. The main clutch for agricultural crawler tractor is a kind of normally closed wet clutch with single disc and spring compressor. So, the operation of the 40-60HP crawler tractor is quite convenient.
3. Additionally, the friction plate of the dry multi-disc steering clutch is made of new material with good durability. The floating band brake has excellent brake performance.
4. The crawler tractor with shovel uses semi-rigid suspension system for outstanding bulldozing performance.
Model | C402 | C502 | C602 |
Crawler tractor | |||
Overall dimension (L×W×H) (with shovel blade) (mm) | 3760×2016×1680 | ||
Min. operating mass (kg) | 3660 | 3670 | 3700 |
Track gauge (mm) | 1100 | ||
Wheelbase (mm) | 1600 | ||
Track shoe width (mm) | 310 | ||
Ground pressure (with shovel blade) (kPa) | 36.8 | 36.9 | 37.2 |
Diesel Engine | |||
Model | YT3A2-22 | YT3B2-22 | YT3B2-22 |
Type | In-line, water cooled, four stroke | ||
Rated power and rotating speed (kW/rpm) | 29.4/2200 | 36.7/2200 | 44/2400 |
Gearbox | |||
Gear shift (F/R) | 8/4 | ||
Speed Range (km/h) (F/R) | 1.81-12.78/2.01-6.05 | 1.97-13.94/2.20-6.60 | |
Power of PTO shaft (kW) | 25 | 31 | 37 |
PTO rotating speed (rpm) | 540/720 | ||
Clutch | Single disc, double acting | ||
Working device of diesel crawler tractor | |||
Suspension type | Rear-mounted, three-point suspension (type II) | ||
Plough depth control method | Height adjustable | ||
Lifting force (KN) | 8 | ||
Size of dozer blade (W×H) (mm) | 2016×680 | ||
Embedded depth of dozer blade (mm) | 260 |
