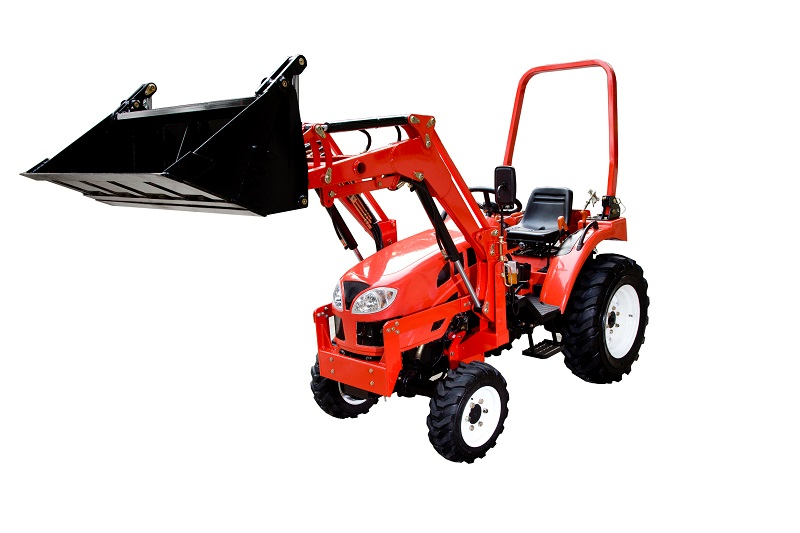

DF224G3 Tractor

22HP, 4WD
Quantity:
  • Dongfeng, DF
Standard Features:

Side shift 8F/8R
Synchro shuttle shift
Rear PTO 540/1000
Mid PTO 2000rpm
Single stage clutch
Power steering
Safety start switch
Fiberglass hood
Spring suspension seat
Cat 1, 3-pt hitch
AG tires

Optional Features:

Hydraulic outlets
Foldable ROPS
Sunshade (ROPS)
Industrial Tires
Model DF224G3
ENGINE
Type 3 Cyl.,  Indirect-injection, water-cooled 4-cycle diesel engine
Engine Gross, HP(kW) 20.7(15.2)
PTO, HP(kW) 16.3(12.0)
Rated Speed, rpm 2600
Displacement, L 1.1
Fuel Tank Capacity, L 22
Drive Train
Transmission 8F/8R
#REF! Synchro shuttle with full synchro mesh
Min/Max forward speed, km/h 1.44—20.11
Steering Power
Clutch Single-stage, overrunning
Brake Wet disk
Differential Lock Mechanical
Drive Type 4WD
PTO
Mid PTO 2,000
Rear PTO, rpm Live 540/1,000
Spline size 6-ø35 Rectangular spline
Hydraulics
Pump Type Gear(tandem)
Implement pump, L/min 20.75
Remotes Valves(Option) 2
3-Point Hitch CAT. 1
Lift Capacity 610mm  behind@ lift balls, kg 400
Dimensions(w/AG Tires)
Overall length, mm 2,505
Overall Width(min. tread), mm 1,388
Overall Height(Top of steering), mm 1,404
Wheelbase, mm 1,546
Min.  Ground Clearance, mm 255
Min.Turning Radius, m 2.00
Weight, kg 1,027
Tires
AG, Front /Rear 6.00-12/9.5-24
Industrial, Front/Rear 22×7/10.5×80-18
