Jinma, JM

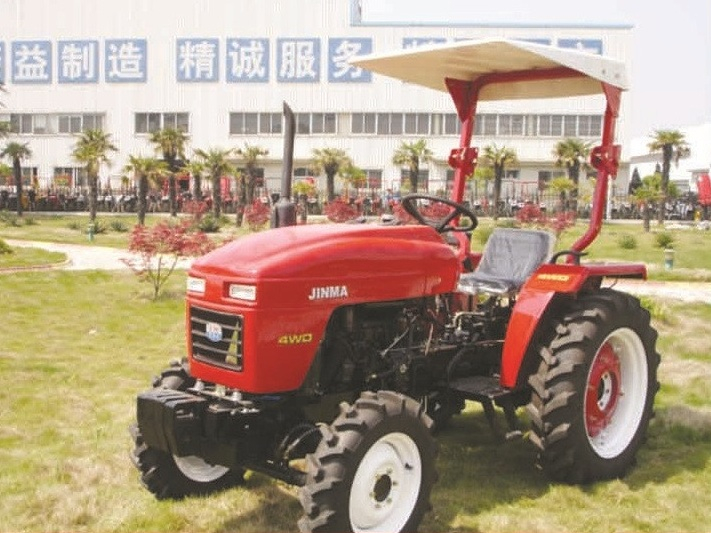

Jinma 184, JM184
Farm tractor
Wheel tractor, wheeled tractor
4WD
18HP, 13.3KW
OECD, EEC
T/T or L/C at sight
12 months since arriving at destination port
1 unit
Shanghai, China
| Basic Parameters | Model | JM-184 | |||
| Drive Type | 4WD | ||||
| Overall Dimensions L*W*H (mm) | 3080x1280x1930 | ||||
| Wheel Track (mm) | Front | 1000-1100 | |||
| Rear | 1040-1200 | ||||
| Wheel Base(mm) | 1645 | ||||
| Ground Clearance (mm) | 295 | ||||
| Rated Traction Force(N) | 4100 | ||||
| Construction Mass(kg) | 1120 | ||||
| Min. Turning Radius(m) | 2.5 | ||||
| Theoretical Speed (without creeper) ( km/h) | Forward | 1.68,3.31,5.52,7.75,15.30,25.50 0.31,0.62,1.03,1.45,2.85,4.76 | |||
| Reverse | 1.33,6.15,0.25,1.15 | ||||
| Engine Specifications | Model | 380 | |||
| Type | 3-Cylinder Vertical, water cooled,4 stroke cycle | ||||
| Rated Power(kw/hp) | 13.2/18 | ||||
| Rated Speed (rpm) | 2400 | ||||
| Bore*Stroke (mm) | 80*90 | ||||
| Total Displacement(L) | 1.357 | ||||
| Drive System | Clutch | Dual-Stage | |||
| Gear Box | (3+1)*2 | ||||
| Main Drive | One Pair of Spiral Bevel Gearing | ||||
| Differential | Bevel Gear | ||||
| Differential Lock | Jaw Lock | ||||
| Final Transmission | External gearing, Spur Gear | ||||
| Traveling Mechanism | Tyre | Front | 6.00-12 | ||
| Rear | 8.3-24 | ||||
| Steering Gear | Full Hydraulic Steering | ||||
| Brake | Shoe type | ||||
| Working Device | Hydraulic System | Lifting Capacity at 610mm Behind Lift Point (N) | 3300 | ||
| 3-Point Suspension | Category: I | ||||
| P.T.O Shaft | Speed (rpm) | 540/1000 | |||
| Spline Size | 6-35Rectangular Spline | ||||
| OPTIONS | ROL BAR,CANOPY,SHUTTLE,HYDRAULIC STEERING,TURF TYRE,CAB | ||||
