YTO

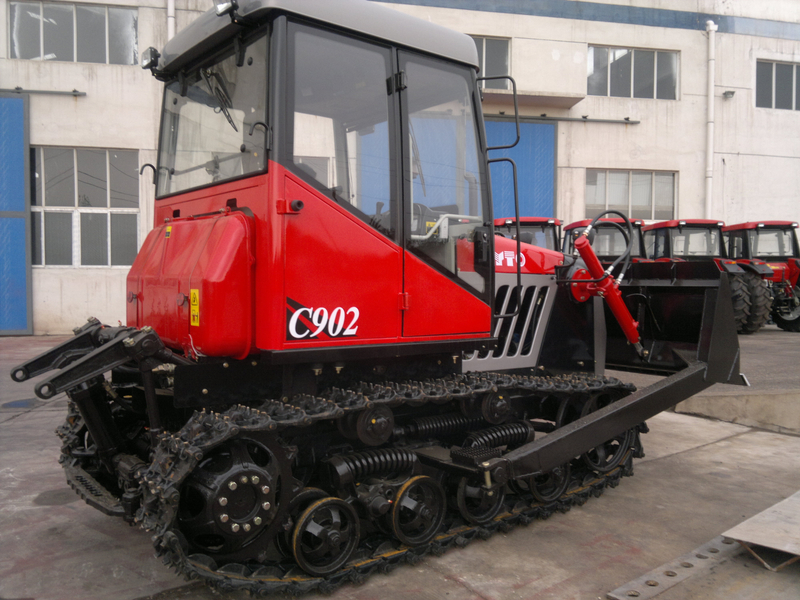

Model | C702-A | C802 | C902 |
70-90HP crawler tractor | |||
Overall dimension (L×W×H) (mm)(with dozer blade) | 4870×2462×2766 | ||
Overall dimension (L×W×H) (mm)(without dozer blade) | 4466×1835×2766 | ||
Min. operating mass (kg) | 6630 (with dozer blade) | 6890 (without dozer blade) | |
Track gauge (mm) | 1435 | ||
Length of contact face of tractor crawler(mm) | 3000 | ||
Track shoe width (mm) | 390 | ||
Ground pressure (kPa) | 47.4 (with dozer blade) | 49.2 (without dozer blade) | |
Diesel engine | |||
Model | LR4B3-22 | LR4A3Z-22 | LR6B5-22 |
Type | In-line, water cooled, four stroke, supercharged | In-line, water cooled, four stroke | In-line, water cooled, four stroke |
Rated power and rotating (kW/rpm) | 51.5/2200 | 58.8/2200 | 66.2/2200 |
Gearbox | | ||
Gear shift (F/R) | 4/2 | ||
Speed range (km/h)(F/R) | 3.67-9.03/3.51-5.59 | ||
Power of PTO shaft (kW) | 44 | 49 | 56 |
PTO rotating speed (rpm) | 750 | ||
Clutch | Double disc, single acting | ||
Working device | |||
Suspension type | Rear-mounted two-point or three-point suspension (type II) | ||
Plowing depth control method | Height adjustable | ||
Lifting force (KN) | 14 | ||
Size of dozer blade (W×H)(mm) | 2462×850 | ||
Embedded depth of dozer blade (mm) | 290 |
