Jinma, JM

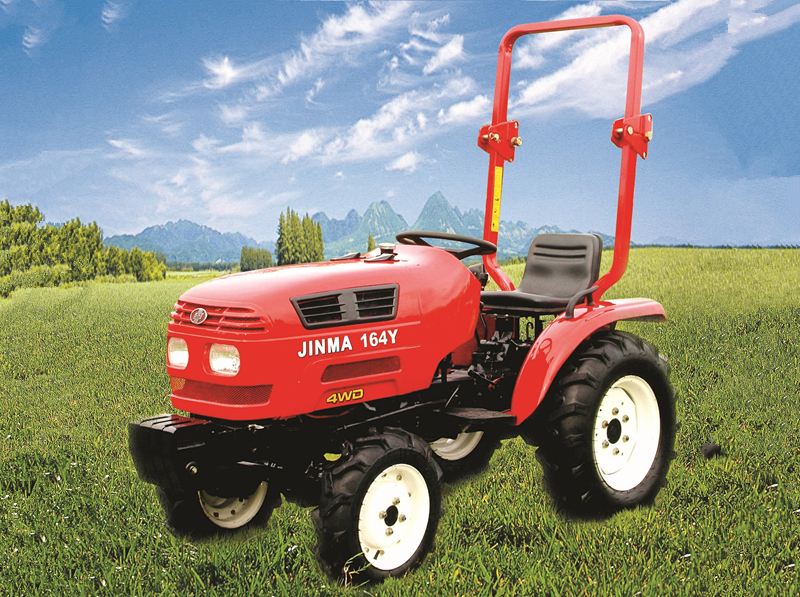

Jinma 164Y, JM164Y
Farm tractor
Wheel tractor, wheeled tractor
4WD
16HP, 11.9KW
OECD, EEC
T/T or L/C at sight
12 months since arriving at destination port
1 unit
Shanghai, China
| Tractor Parameters | Model | JM-164Y | |||
| Drive Type | 4WD | ||||
| Overall Dimensions L*W*H (mm) | 2602x1050x2403 | ||||
| Wheel Track (mm) | Front | 750 | |||
| Rear | 840，940 | ||||
| Wheel Base(mm) | 1290 | ||||
| Ground Clearance (mm) | 248 | ||||
| Rated Traction Force(N) | 3500 | ||||
| Construction Mass(kg) | 890 | ||||
| Min. Turning Radius(m) | 2.40 | ||||
| Theoretical Speed ( km/h) | Forward | 1.32,1.95,3.04,6.01,8.9,13.92 | |||
| Reverse | 1.63,7.46 | ||||
| Engine Specifications | Model | 3M78 | |||
| Type | 3-Cylinder Vertical, water cooled, 4 stroke cycle | ||||
| Rated Power(kw/hp) | 11.8/16 | ||||
| Rated Speed (rpm) | 2400 | ||||
| Bore*Stroke (mm) | 78X78.4 | ||||
| Total Displacement(L) | 1.123 | ||||
| Drive System | Clutch | 7'Single Stage | |||
| Gear Box | (3+1)*2 | ||||
| Main Drive | Column form gear | ||||
| Differential | Bevel Gear | ||||
| Differential Lock | Jaw Lock | ||||
| Final Transmission | External gearing, Spur Gear | ||||
| Traveling Mechanism | Tyre | Front | 5.00-12 | ||
| Rear | 7.5-16 | ||||
| Steering Gear | Power Steering | ||||
| Brake | Disc type | ||||
| Working Device | Hydraulic System | Lifting Capacity at 610mm Behind Lift Point (N) | 2640 | ||
| 3-Point Suspension | Category: 0 | ||||
| P.T.O Shaft | Rotating speed (rpm) | 540/720/1000 | |||
| Spline Size | 6-35Rectangular Spline | ||||
| OPTIONS | ROLL BAR,CANOPY | ||||
