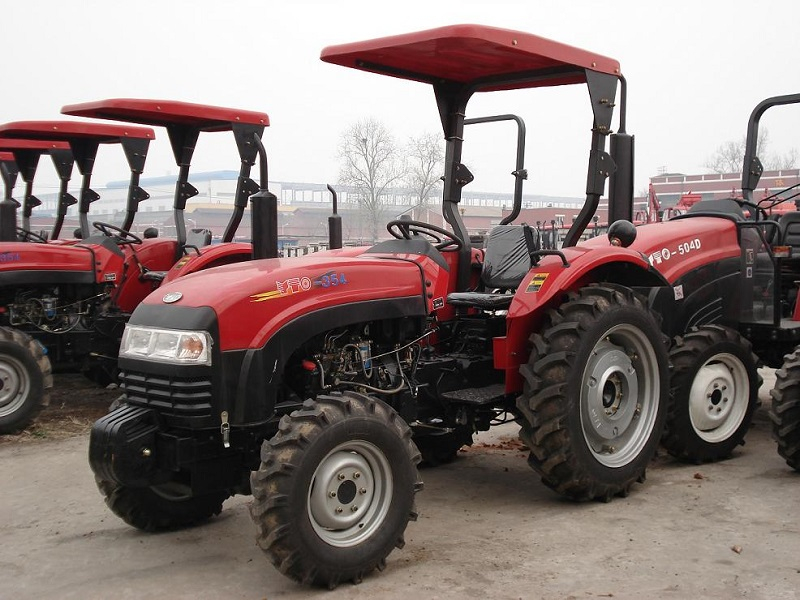

YTO ME304 Tractor

Availability:
Quantity:
  • YTO

The 30-40HP wheeled tractor is designed with direct injection diesel engine, characterizing large torque and vigorous power. Besides, this product has the following features:
1. There is a sliding sleeve matched for the transmission and power output shaft of the farm tractor. Besides the gear shift, the shuttle shift and creeper gear are optional.
2. The wet double disc brake device makes for outstanding brake performance and high safety of the agrimotor.
3. Provided with dual clutch and transmission device, the 30-40HP wheeled tractor has higher working efficiency.
4. Our farm equipment is installed with double speed PTO shaft, and two hydraulic outlets. So it can be matched with many farm implements.
5. The compact structure, small turning radius and flexible turning make it suitable for the application on small site.
6. For intelligent operation, the 7.10mm high-clearance tractor is available from us, as well.

Model YTO-ME300 YTO-ME304 YTO-ME350 YTO-ME354 YTO-ME350H YTO-ME400
Tractor





Drive Type 4*2 4*4 4*2 4*4 4*2
Overall Dimensions (L*W*H)(mm) 3520*1485*2632 3575*1485*2632 3540*1485*2677 3595*1485*2677 3595*1700*2740 3600*1700*2740
Wheel Base (mm) 1690 1745 1705 1760 1730 1790
Min. Ground Clearance (mm) 338 235 380 280 710
Min. Operating Mass (kg)(ROPS) 1445 1655 1535 1745 1700 1650
Tyre Size (F/R) 5.50-16/11.2-24 6.50-16/11.2-24 5.50-16/ 11.2-28 7.50-16/11.2-28 6.0-16/12.4-28
Wheel Track (F/R) (mm) 1100-1400/1100-1400 1200/1100-1400 1100-1400/1100-1400 1200/1100-1400 1100-1400/ 1100-1400
Gear Shift (F/R) 8/4 8/4 8/4 8/4 8/4 8/4
Speed Range (km/h)(F/R) 2.21-28.93/3.27-9.99 2.21-28.93/3.27-9.99 2.25-29.53/3.34- 10.20 2.25-29.53/3.34-10.2 2.09-27.38/3.10- 9.45 2.27-29.86/ 3.38-10.31
Lifting Force (610mm)(KN) ≥5.0 ≥5.0 ≥5.8 ≥5.8 ≥5.8 ≥6.6
Lifting Force (Link Joint)(KN) 7.7 7.7 8.5 8.5 - -
Diesel Engine





Model ZN390T ZN390T SL3100ABT-2 SL3100ABT-2 SL3100ABT-2 C490BT-7
Type 3-cylinder, in-line, vertical, water cooled, four stroke 3-cylinder, in-line, vertical, water cooled, four stroke 3-cylinder, in-line, vertical, water cooled, four stroke 3-cylinder, in-line, vertical, water cooled, four stroke 3-cylinder, in-line, vertical, water cooled, four stroke 4-cylinder, in-line, vertical, water cooled, four stroke
Displacement (L) 1.81 1.81 2.76 2.76 2.76 2.54
Rated Power/Rotating Speed (kW/rpm) 22.1/2350 22.1/2350 25.7/2200 25.7/2200 25.7/2200 29.4/2300
