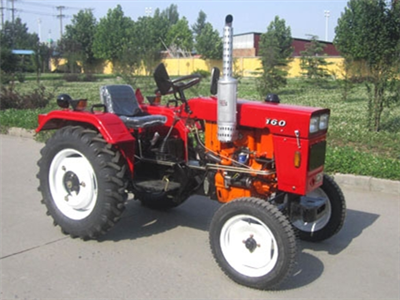

FM120/FM160/FM180//FM220
FOTMA
| Model | FM120 | FM160 | FM180 | FM220 |
| Type | 4*2 | 4*2 | 4*2 | 4*2 |
| Rated Tractive Force(kN) | 3.1 | 3.3 | 3.5 | 4.6 |
| Overall Dimensions(L*W*H)(mm) | 2285*1200*1665 | 2285*1200*1665 | 2285*1200*1665 | 2580*1380*1885 |
| Structural Mass(kg) | 645 | 700 | 700 | 940 |
| Min. Operating Mass(kg) | 755 | 820 | 820 | 1100 |
| Wheelbase(mm) | 1400 | 1400 | 1400 | 1450 |
| Wheel Tread(mm) | 990 | 990 | 990 | 990 |
| Min. Ground Clearance(mm) | 275 | 275 | 275 | 340 |
| Min. Turning Radius(m) | 3.5 | 3.9 | 3.9 | 3.9 |
| Speed(km/h) | 2.00-22.14 | 2.28-25.24 | 2.28-25.27 | 2.84-31.45 |
| Hitch Linkage | O type, rear mounted, three point linkage | |||
| PTO Shaft Type | Rear mounted, dependent, 540rpm, clockwise, Φ35mm | |||
| Tire | 4.00-12/7.50-16 | 4.00-12/7.50-16 | 4.00-12/7.50-16 | 4.50-14/8.30-20 |
| Engine Model | DL190-12 | DLH1100 | DLH1105/JDL1105 | TY295I |
| Engine Typre | Single/Two cylinder, vertical, water cooled, 4 stroke | |||
| 12-hour Rated Power(kw) | 8.1 | 11.76 | 11.76 | 16.2 |
| Rotate Speed(r/min) | 2200 | 2400 | 2400 | 2300 |
| Starting Method | Crank or Electric start | Electric start | Electric start | Electric start |
| BorexStroke(mm) | 90x110 | 100X115 | 100X115 | 95x105 |
| Fuel Oil Consumption(g/kw*h) | ≤251.6 | ≤251.6 | ≤251.6 | ≤250 |
| Lubricating Oil Consumption(g/kw*h) | ≤2.04 | ≤2.04 | ≤2.04 | ≤2.04 |
