YTO
Technical Parameters | ||||

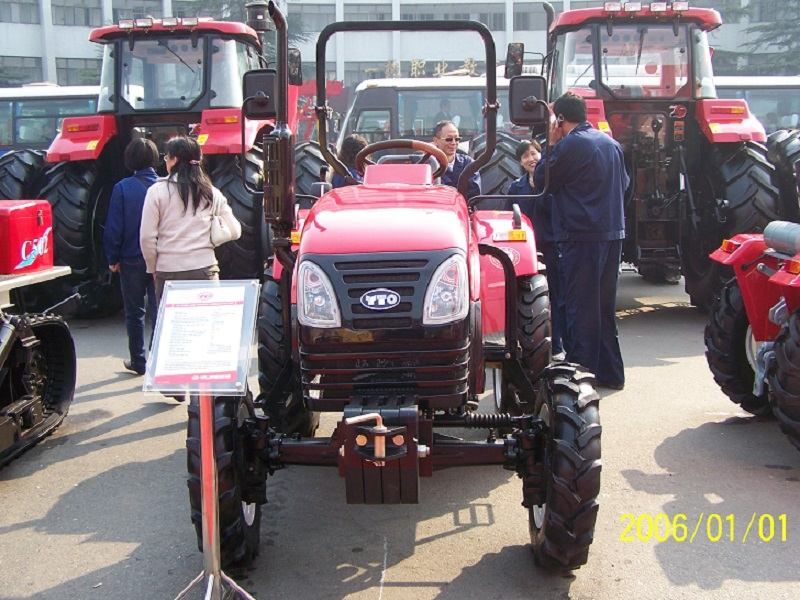

Model | YTO-SG254 | YTO-SG284 | YTO-SG304 | YTO-SG354 |
Wheeled Tractor | ||||
Drive Type | 4×4 | |||
Overall Dimension (L×W×H)(mm) | 3405×1440×1535 | 3490×1450×1535 | 3650×1590×1580 | |
Wheel Base (mm) | 1698 | 1738 | 1855 | |
Min. Ground Clearance (mm) | 315 | 325 | ||
Min. Operating Mass (kg) (ROPS) | 1550 | 1570 | ||
Tyre Size (F/R) | 6.00-16/9.5-24 | 6.50-16/11.2 -24 | ||
Wheel Track (F/R)(mm) | 1200/1100-1400 | |||
Gear Shift (F/R) | 8/4 | |||
Speed Range (km/h)(F/R) | 2.07-29.65/2.45-7.84 | 2.12-30.28/2.50-8.01 | 2.22-32.28/2.69-8.39 | |
Lifting Force (610mm)(KN) | ≥4.14 | ≥4.64 | ≥4.96 | ≥5.80 |
Lifting Force (Link Joint)(KN) | 6.5 | 7.1 | 7.6 | 8.3 |
Diesel Engine | ||||
Model | YD385T | ZN390T | YND485T | |
Type | 3-cylinder, vertical, water cooled, four stroke | 4-cylinder, vertical, water cooled, four stroke | ||
Displacement (L) | 1.53 | 1.81 | 2.16 | |
Rated Power/Rotating Speed (kW/rpm) | 18.4/2350 | 20.6/2400 | 22.1/2400 | 25.7/2400 |
Model | YTO-SG250 | YTO-SG280 | YTO-SG300 | YTO-SG350 |
Wheeled Tractor | ||||
Drive Type | 4×2 | |||
Overall Dimensions (L×W×H)(mm) | 3490×1450×1550 | 3650×1590×1580 | ||
Wheel Base (mm) | 1690 | 1760 | ||
Min. Ground Clearance (mm) | 320 | 330 | ||
Min. Operating Mass (kg) | 1440 | 1480 | ||
Tyre Size (F/R) | 5.00-16/9.5-24 | 5.50-16/11.2-24 | ||
Wheel Track (F/R)(mm) | 1100-1400/1100-1400 | |||
Gear Shift (F/R) | 8/4 | |||
Speed Range (km/h)(F/R) | 2.07-29.65/2.45-7.84 | 2.12-30.28/2.50-8.01 | 2.22-32.28/2.69-8.39 | |
Lifting Force (610mm)(KN) | ≥4.14 | ≥4.64 | ≥4.96 | ≥5.80 |
Lifting Force (Link Joint)(KN) | 6.5 | 7.1 | 7.6 | 8.3 |
Diesel Engine | ||||
Model | YD385T | ZN390T | YND485T | |
Type | 3-cylinder, vertical, water cooled, four stroke | 4-cylinder, vertical, water cooled, four stroke | ||
Displacement (L) | 1.53 | 1.81 | 2.16 | |
Rated Power/Rotating Speed (kW/rpm) | 18.4/2350 | 20.6/2400 | 22.1/2400 | 25.7/2400 |
Technical Parameters | ||||
Model | YTO-SG254 | YTO-SG284 | YTO-SG304 | YTO-SG354 |
Wheeled Tractor | ||||
Drive Type | 4×4 | |||
Overall Dimension (L×W×H)(mm) | 3405×1440×1535 | 3490×1450×1535 | 3650×1590×1580 | |
Wheel Base (mm) | 1698 | 1738 | 1855 | |
Min. Ground Clearance (mm) | 315 | 325 | ||
Min. Operating Mass (kg) (ROPS) | 1550 | 1570 | ||
Tyre Size (F/R) | 6.00-16/9.5-24 | 6.50-16/11.2 -24 | ||
Wheel Track (F/R)(mm) | 1200/1100-1400 | |||
Gear Shift (F/R) | 8/4 | |||
Speed Range (km/h)(F/R) | 2.07-29.65/2.45-7.84 | 2.12-30.28/2.50-8.01 | 2.22-32.28/2.69-8.39 | |
Lifting Force (610mm)(KN) | ≥4.14 | ≥4.64 | ≥4.96 | ≥5.80 |
Lifting Force (Link Joint)(KN) | 6.5 | 7.1 | 7.6 | 8.3 |
Diesel Engine | ||||
Model | YD385T | ZN390T | YND485T | |
Type | 3-cylinder, vertical, water cooled, four stroke | 4-cylinder, vertical, water cooled, four stroke | ||
Displacement (L) | 1.53 | 1.81 | 2.16 | |
Rated Power/Rotating Speed (kW/rpm) | 18.4/2350 | 20.6/2400 | 22.1/2400 | 25.7/2400 |
Model | YTO-SG250 | YTO-SG280 | YTO-SG300 | YTO-SG350 |
Wheeled Tractor | ||||
Drive Type | 4×2 | |||
Overall Dimensions (L×W×H)(mm) | 3490×1450×1550 | 3650×1590×1580 | ||
Wheel Base (mm) | 1690 | 1760 | ||
Min. Ground Clearance (mm) | 320 | 330 | ||
Min. Operating Mass (kg) | 1440 | 1480 | ||
Tyre Size (F/R) | 5.00-16/9.5-24 | 5.50-16/11.2-24 | ||
Wheel Track (F/R)(mm) | 1100-1400/1100-1400 | |||
Gear Shift (F/R) | 8/4 | |||
Speed Range (km/h)(F/R) | 2.07-29.65/2.45-7.84 | 2.12-30.28/2.50-8.01 | 2.22-32.28/2.69-8.39 | |
Lifting Force (610mm)(KN) | ≥4.14 | ≥4.64 | ≥4.96 | ≥5.80 |
Lifting Force (Link Joint)(KN) | 6.5 | 7.1 | 7.6 | 8.3 |
Diesel Engine | ||||
Model | YD385T | ZN390T | YND485T | |
Type | 3-cylinder, vertical, water cooled, four stroke | 4-cylinder, vertical, water cooled, four stroke | ||
Displacement (L) | 1.53 | 1.81 | 2.16 | |
Rated Power/Rotating Speed (kW/rpm) | 18.4/2350 | 20.6/2400 | 22.1/2400 | 25.7/2400 |
