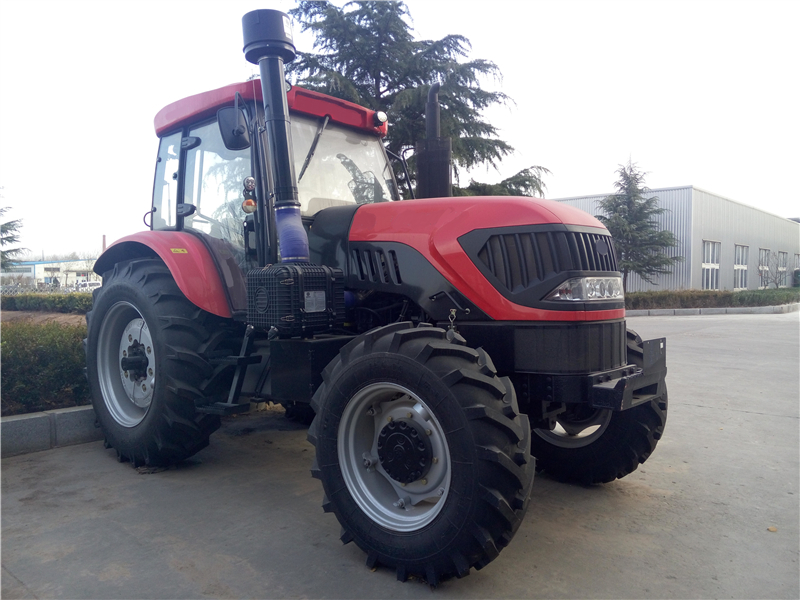

Fotma FM1404 Tractor

Availability:
Quantity:
  • FOTMA

1. Adopt YTO diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency;
2. Double-function clutch, 13 inches, high transmission capacity, reliable, comfortable manipulation;
3. Gearbox using 4*(3 +1) engaging sleeve gearshift, there are 12forward gears, 4 reverse gears, reasonable match between the gears, and have high efficiency;
4. Independent power take off device, smooth transmission, large capacity;
5. Using an independent circuit of hydraulic steering control system, manipulating flexible, reliable, and save energy;
6. Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good;
7. Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned;
8. Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio;
9. New streamlined appearance, generous, modern, fashion.

Tractor Model FM1404
Drive Type 4*4
Overall Dimension  L×W×H(mm) 5050*2370*3000
Wheel base(mm) 2688.5
Front wheel tread(mm) 1822-2153(1910)
Rear wheel tread(mm) 1662-2262(1662)
Min. ground clearance(mm) 470
Min.  steering radius 7
Min. operating weight (KG) 4810
Gearbox  gears number 12F+4R
Speed Forward(Kw/h) 2.19-29.63
Reverse(Kw/h) 4.72-13.83
Engine Model LR6M5-23
Rated power (Kw) 103.7
Type 6 cylinders, in line, water cooling, 4 strokes, direct injection, natural aspiration
Rated speed (r/min) 2300
Tires spec. Front tires 14.9-26
Rear tires 18.4-38
Steering Type Full hydraulic  front wheels steering
Max. lifting force( KN ) ≥28
PTO Type Rear-mounted, Independent type
Speed (r/min) 540/1000
Power(Kw) 92.7
Control type of ploughing depth  Height control & flotation control
Max. traction force (KN) 32
Front / rear Ballast (KG) 600/400
Notice: As our products will be improved continuously , all above parameters are subject to modification without notice.
