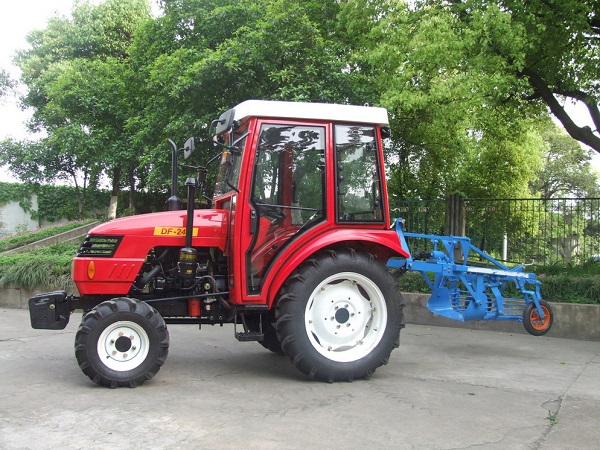

DF244 Tractor

24HP, 4WD
Quantity:
  • Dongfeng, DF

This tractor series has the advantages of economic fuel consumption, easy operation, harmonious appearance, compact construction and simple maintenance. It has eight forward gears and two reverse gears, the speeds range from 1.11 to 26.20 km/hr. The tractor is equipped with the linkage type double-acting clutch. It can be used for many farming jobs such as rototilling, plowing, harrowing, seeding, inter-row cultivation and harvesting if suitable farm implements are matched. Meanwhile, this tractor series may be provided with the intensified function of transporting, i.e. the air brake facilities (optional) for trailer, which can improve the safety conditions of a transporting unit (i.e. a four wheel tractor hitched with a trailer for transportation). Really, this tractor series is of an ideal type for the small or medium farms.

Main Dispositions:
(1)Single-function clutch
(2)Twin turning speeds of P.T.O.( Speed 540/730 rpm)
(3)Mechanical steering
(4)Safe start switch
(5)Metal sheet hood
(6)Single meters
(7)Quality seat system

Options:
Dual-function clutch
Power steering
 Folding ROPS
 Sun shade
 Spring seat system
 Turf tyre
 Industrial tyre
 EPA Engine
 Hydraulic outlet


Tractor Parameters Model DF-254
Drive Type 4 4WD
Overall Dimensions L×W×H(mm): 2661×1158×1910

Wheel Track(mm) Front 952
Rear 1020-1320
Wheel Base(mm) 1574
Ground Clearance(mm) 290
Rated Traction Force(N) In Paddy Fields 3920
In Dry Fields 5880
Construction Mass(kg) 1190
Min. Turning Radius(m) 2.20
Theoretical(km/h) Forward 1.12,1.49,2.89,4.51,5.79,7.74,14.96,24.94
Reverse 1.31,6.8
Engine Specifications Model 385
Type 3-cylinder,Upright inline cylinder, radiator cooling,4-storke cycle, swirl chamber
12-hour Rated Power(kW/hp) 17.6/24.4
1-hour Rated Power(kW) 18.4/25.0
Rated Speed(rpm) 2400
Bore ×Stroke(mm) 85×90
Total Displacement(L) 1.532
Drive System Clutch Single friction disc, dry and constant meshing
Gear Box (4+1)×2,planar 3-shaft for main transmission, epicyclic gearing for auxiliary-transmission
Main Drive One Pair of Spiral Bevel Gears
Differential Bevel Gear
Differential Lock Jaw Lock
Final Transmissions Spur Gear, External Gearing
Traveling Mechanism Tire  Front 6.00-12(Herringbone Pattern)
Rear 9.5-24(Herringbone Pattern)
Steering Gear Spherical worm roller typre
Brake Sealed Shoe
Working Device Hydraulic System Lifting Capacity at 610 mm Behind Lift Point(kg) 423kg
3-Point Suspension Category: 0
P.T.O. Shaft Rotating Speed(rpm) 540/730
Spline Size 6-ф35Rectangular Spline
