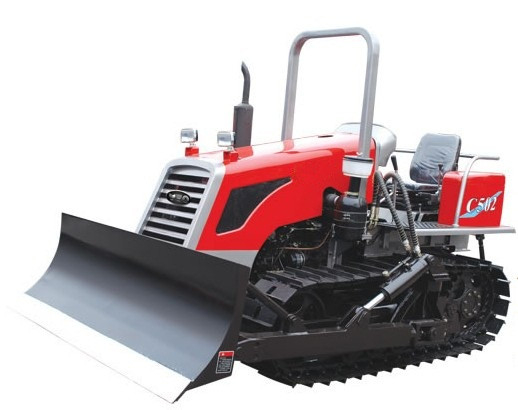

YTO-C502 Crawler Tractor

Quantity:
  • YTO

The diesel engine of the 40-60HP crawler tractor is produced based on the British technology. So our product features large torque, powerful overload capacity, low fuel consumption, and environment protection. Beside, this chain track tractor is well received by virtue of the following characteristics.

1. The (2+1)×4 compound gearbox with shift sleeve is provided with multiple gears, resulting in convenient operation and wide application.
2. The main clutch for agricultural crawler tractor is a kind of normally closed wet clutch with single disc and spring compressor. So, the operation of the 40-60HP crawler tractor is quite convenient
3. Additionally, the friction plate of the dry multi-disc steering clutch is made of new material with good durability. The floating band brake has excellent brake performance.
4. The crawler tractor with shovel uses semi-rigid suspension system for outstanding bulldozing performance.

Model C402 C502 C602
Crawler tractor
Overall dimension (L×W×H) (with shovel blade) (mm) 3760×2016×1680
Min. operating mass (kg) 3660 3670 3700
Track gauge (mm) 1100
Wheelbase (mm) 1600
Track shoe width (mm) 310
Ground pressure (with shovel blade) (kPa) 36.8 36.9 37.2
Diesel Engine
Model YT3A2-22 YT3B2-22 YT3B2-22
Type In-line, water cooled, four stroke
Rated power and rotating speed (kW/rpm) 29.4/2200 36.7/2200 44/2400
Gearbox
Gear shift (F/R) 8/4
Speed Range (km/h) (F/R) 1.81-12.78/2.01-6.05 1.97-13.94/2.20-6.60
Power of PTO shaft (kW) 25 31 37
PTO rotating speed (rpm) 540/720
Clutch Single disc, double acting
Working device of diesel crawler tractor
Suspension type Rear-mounted, three-point suspension (type II)
Plough depth control method Height adjustable
Lifting force (KN) 8
Size of dozer blade (W×H) (mm) 2016×680
Embedded depth of dozer blade (mm) 260
