Jinma, JM, HHJM

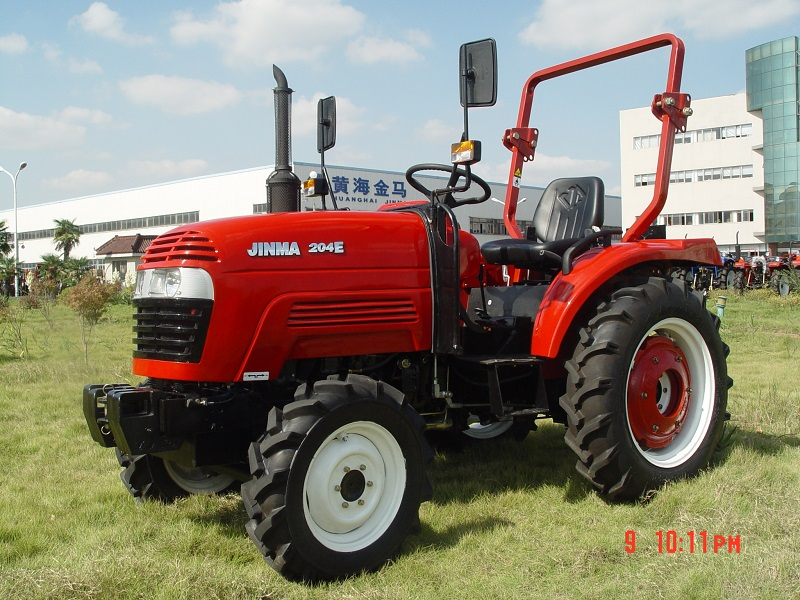

| Model | JM-204E | ||
| Drive Type | 4WD | ||
| Overall Dimensions L*W*H (mm) | 3185x1440x2530 | ||
| Wheel Track (mm) | Front | 1000-1100 | |
| Rear | 1040-1200 | ||
| Wheel Base(mm) | 1695 | ||
| Ground Clearance (mm) | 295 | ||
| Rated Traction Force(N) | 4800 | ||
| Construction Mass(kg) | 1380 | ||
| Min. Turning Radius(m) | 2.5 | ||
| Theoretical Speed (Without creeper) (km/h) | Forward | 1.68,3.31,5.52,7.75,15.30,25.50 0.31,0.62,1.03,1.45,2.85,4.76 | |
| Reverse | 1.33,6.15,0.25,1.15 | ||
| Engine Specifications | Model | KM385TE1 | |
| Type | 3-Cylinder Vertical, water cooled,4 stroke cycle | ||
| Rated Power(kw/hp) | 14.7/20 | ||
| Rated Speed (rpm) | 2350 | ||
| Bore*Stroke (mm) | 85*90 | ||
| Total Displacement(L) | 1.532 | ||
| Drive System | Clutch | Dual-Stage | |
| Gear Box | (3+1)*2 | ||
| Main Drive | One Pair of Spiral Bevel Gearing | ||
| Differential | Bevel Gear | ||
| Differential Lock | Jaw Lock | ||
| Final Transmission | External gearing, Spur Gear | ||
| Traveling Mechanism | Tyre | Front | 6.00-12 |
| Rear | 8.3-24 | ||
| Steering Gear | Full Hydraulic Steering | ||
| Brake | Disc type | ||
| Working Device | Hydraulic System | Lifting Capacity at 610mm Behind Lift Point (N) | 3600 |
| 3-Point Suspension | Category: I | ||
| P.T.O Shaft | Speed (rpm) | 540/1000 | |
| Spline Size | 6-35Rectangular Spline | ||
| OPTIONS | ROLL BAR,CANOPY | ||
