1BJX Series Trailed Middle-Duty Offset Disc Harrow

1. With high strength beams made of high quality steel;
2. It is designed for working in medium soil condition;
3. Three point mounted linkage method.
Quantity:
  • 1BJX
  • FOTMA

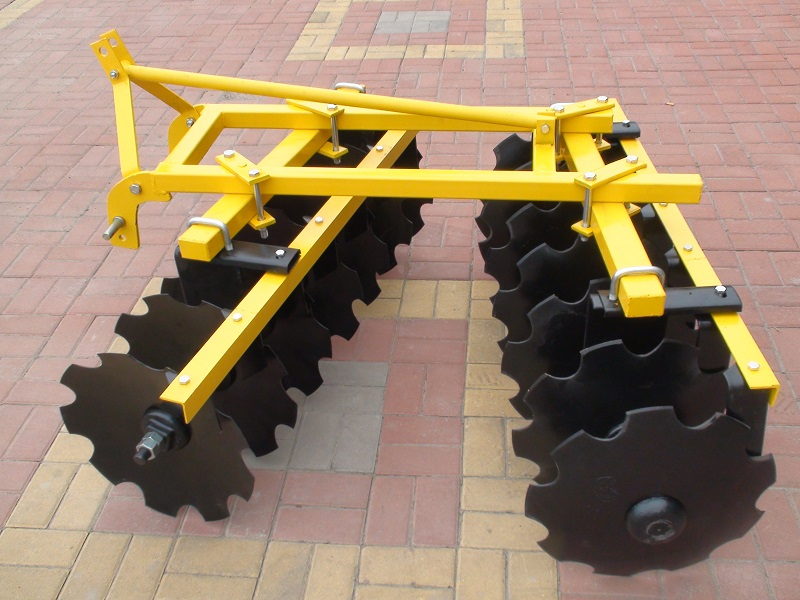

1BJX Series Trailed Middle Offset Disc Harrow, with high strength beams made of high quality steel, is designed for working in medium soil condition. The harrow is used for breaking up the ground, shattering the clods, smashing and mixing crop stubbles into soil as green manures etc. Three point mounted linkage method facilitates the harrow to work and transport in top speed when connecting with tractor.

Features:
1. 32×32 square shaft used, 230mm spacing between discs;
2. Specially suitable for harrowing in medium soil condition;
3. Tubular structure harrow beams of high-strength used, much stable during work;
4. Favorable harrowing effect with deep cultivating depth;
5. Three point mounted with tractor, can easily operate in land corners or turned around with high speed.
Model 1BJX-1.7 1BJX-2.0 1BJX-2.2 1BJX-2.4 1BJX-2.5
Working width(m) 1.7 2.0 2.2 2.4 2.5
Working depth(mm) 140 140 140 140 140
No. of disc 16 18 20 22 24
Disc diameter 22’’ 22’’ 22’’ 22’’ 22’’
Weight(kg) 390 434 463 604 760
Tractor power(hp) 45 50 55-65 65-75 80
Linkage Standard three pointed mounted
