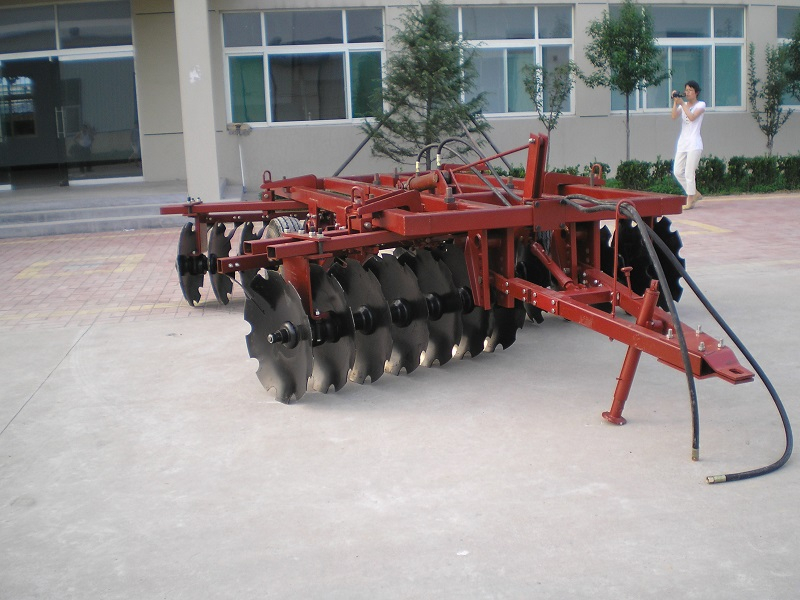

1BZD Hydraulic Disc Harrow

1. Suitable for cleaning stubble before tillage;
2. Breaking the soil after tillage in the field of wasteland, shrub bog and heavy soil.
Quantity:
Inquire Add to Basket

  • 1BZD

  • FOTMA

It is suitable for cleaning stubble before tillage and breaking the soil after tillage in the field of wasteland, shrub bog and heavy soil.

It is adopted farme type of symmetrical structure and can eliminate the bias traction in the course of irs work on the tractor.
Model Unit 1BZD-2.8 1BZD-3.3 1BZD-3.8
Overall dimension mm 5120*2700*1500 5260*3200*1500 5330*3680*1500
Working width mm 2800 3300 3800
Working depth mm 180-220 180-220 180-220
No. of blades pc 24 28 32
Overall weight kg 2050 2600 3100
Matched power hp 80-100 100-120 120-160
Linkage / Trailed
