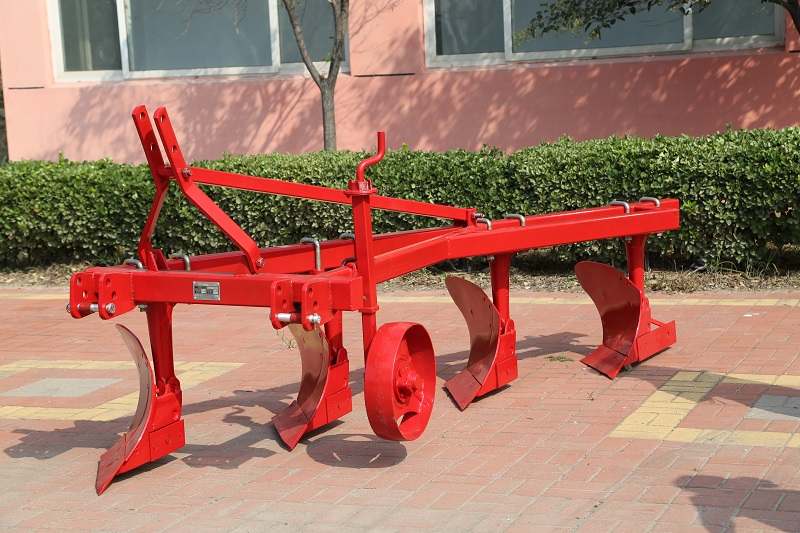

1L Share Plough

1. Match with four wheel tractor;
2. Suitable for loam, or sandy loam soil in the cultivated area.
Model:
Quantity:
  • FOTMA

Mouldboard plow, designed to match with four wheel tractor and is suitable for loam, or sandy loam soil in the cultivated area.This implement is compact in construction, and wide range in application. It produces the best wort, leaving alevel surface and a narrow furrow, with a good pulverization and mulching.
Modle
unit
1L-220
1L-320
1L-420
1L-520
1L-225
1L-325
1L-425
1L-525
Number of bottoms

2
3
4
5
2
3
4
5
Working width
m
0.4
0.6
0.8
1.0
0.5
0.75
1.0
1.25
Working depth
mm
200~250
200~250
Total weight
kg
80
115
145
180
125
228
330
435
Matched power
hp
12
25~30
30
45~55
25
35
50
65
Linkage

(Standard three-point mounted)
