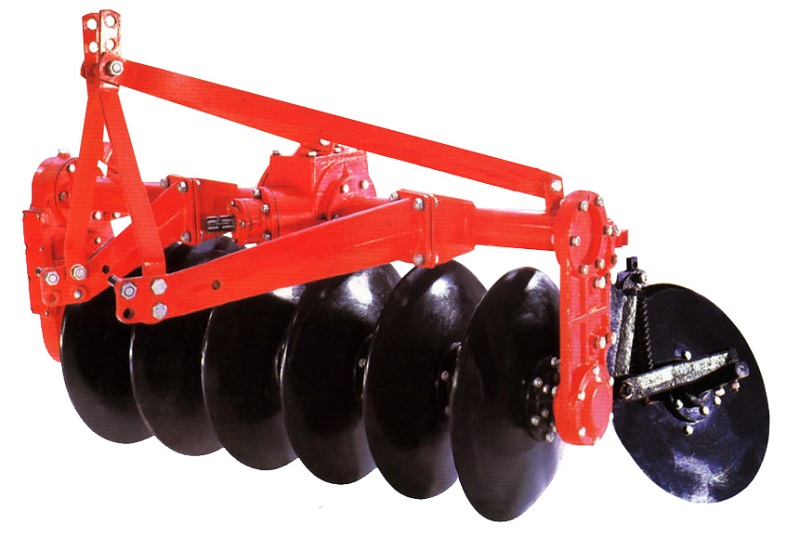

1LYQ Rotary-driven Disc Plough

Quantity:
Inquire Add to Basket

  • FOTMA

1LYQ driven disc plow is mounted with tractor by the rear three-point suspension device and drives the plough discs to rotate in the way of delivering power by tractor's rear PTO to the disc plough's gear box.this machine is mainly suitable for cultivation on paddy field. With the advantages of non-tangling weeds,high quality and effciency.



Model

Unit

1LYQ-422

1LYQ -522

1LYQ-622

1LYQ -722

1LYQ-822

Overall dimension

mm

965*1365*1050

1075*1585*1050

1210*1805*1050

1325*2025*1050

1440*2245*1050

Working width

mm

880

1100

1320

1540

1760

Matched power

hp

18~22

25~30

40~50

50~60

60~70

Working depth

mm

200~240

Rotating speed of input shaft

r/min

540~720

Rotating speed of cutter shaft

r/min

90~120
