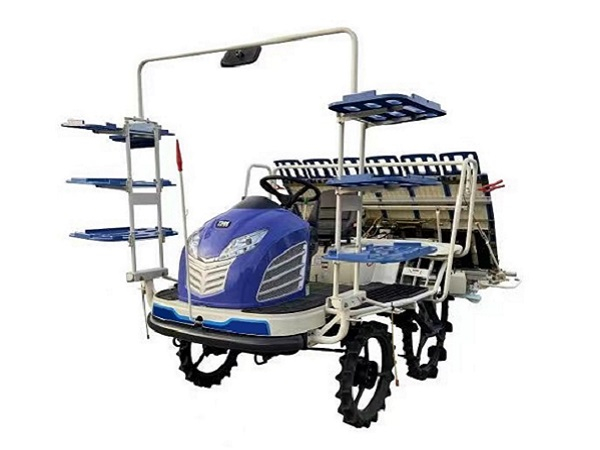

2ZGQ-6D Riding Rice Transplanter

Rice transplanter is a kind of agricultural machinery that can implant rice seedlings into rice fields.
Quantity:
  • 2ZGQ-6D
  • FOTMA
  • 2ZGQ-6D
  • Rice transplanter
  • 1 unit
  • T/T or L/C at sight
  • 12 months since arrival at destination port
  • Shanghai, China

Machine dimension Total lengthmm 3000
Total widthmm 2080
Total heightmm 2145
Minimum height from ground 430mm
Machine weight 680kg
Engine

Model 3TNM72
Brand YAMMAR
Type Water cooled 3 cylinder 4-stroke diesel engine
Total air exhaust 614CC
Power/rpm 15.6kw/3200r/min
Fuel diesel
Fuel tank capacity 20L
Start method Electric self start
Planting part  Planting method Rotary type planting
Planting rows  6
Row space  300mm
Seedlings Amout per Hill Horizontal transfer
(mm/times)
15.5/18 14/20 10.7/26
Vertical depth(mm) 8-19(12 levels)
Hill space(mm) 24 19 17 14 12 10
Planting Hills Amout(Hills/3.3m2) 40 50 60 70 80 90
Seedling pieces(pieces/hill) 2-5(adjustable)
Maximum transplanting speed(m/s) 1.62
Transplanting capacity(hm2/h) 0.32
Fuel consumption(kg/hm2) 5.7
Planting depth(mm) 0-55(adjustable)
Seedling box balance system Automatic electronic control system


Description
Anti-slip wheels and floating design when moving on the soil. If the seedlings are inserted into pieces, the rice seedlings are taken out from a specific seedling box and then planted mechanically. Rice transplanter is a kind of agricultural machinery that can implant rice seedlings into rice fields. When planting, firstly take out several rice seedlings from the Seedbed and implant them into the soil, in order to keep the angle between the Seedbed and the ground as a right angle, when moving the front end of the mechanical claw, The Oval action curve must be adopted. The action is done by the planetary mechanism of rotating or deformation gear, and the forward engine can drive these action machines at the same time. The rice transplanter must have antiskid wheels and float design when moving on the soil. If the seedlings are inserted into pieces, the rice seedlings are taken out from the specific seedling box and then planted mechanically.

Advantages
1. With the help of Synchro-Shuttle system located under the steering for ease of operation, tractor can be switched between forward and reverse without stopping. These features make gear shifting easier, smooth operation and powerful agility.
2. Tractor has a great balance between weight, ground clearance and horse power which help you to work in any puddle or cross ridges.
3. With 8 forward, 8 reverse speeds and the proper set speed for each gear, tractors speed can be chosen to suit with various implements.
4. Two selectable PTO gear speeds; 540 and 750 rpm*, allow you to choose the right speed to suit various working conditions, including soil pulverization by rotary and atomized spraying by boom sprayer.
