Air cooled 4 stroke, 1 cylinder OHC gasoline engine
Total exhaust capacity (cc)
171cc
Power/rpm
4.3hp/3200
Fuel
gasoline
Fuel tank
4L
Starting method
Recoil starter
Number of planting rows
4 rows
Planting row spacing (cm)
30
Seedling cross feed(mm/times)
10.8/26
11.7/24
14/20
Vertical depth(mm)
8-18(10 levels)
Hill space (cm)
12
14
16
17
19
21
Planting hills amout(hill/3.3m2)
90
80
70
60
55
50
Seedling pieces(pieces/hill)
2-5(adjustable)
Transplanting capacity(hm2/h)
0.16-0.3
Fuel consumption(kg/hm2)
3-6kg/hm2
Planting depth(mm)
0-46(adjustable)
Type

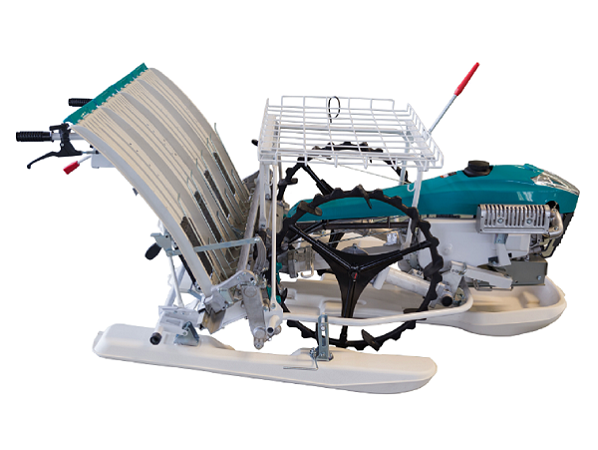

2ZS-4AWalking Rice Transplanter
Usage
Rice & Wheat Harvesting
Planting efficiency (hm2/hour)
0.16～0.3
Overall dimension
2480*1480*840(950)mm
Weight
175kg
Transmission mode
Hanging gear transmission
Engine
Air cooled 4 stroke, 1 cylinder OHC gasoline engine
Total exhaust capacity (cc)
171cc
Power/rpm
4.3hp/3200
Fuel
gasoline
Fuel tank
4L
Starting method
Recoil starter
Number of planting rows
4 rows
Planting row spacing (cm)
30
Seedling cross feed(mm/times)
10.8/26
11.7/24
14/20
Vertical depth(mm)
8-18(10 levels)
Hill space (cm)
12
14
16
17
19
21
Planting hills amout(hill/3.3m2)
90
80
70
60
55
50
Seedling pieces(pieces/hill)
2-5(adjustable)
Transplanting capacity(hm2/h)
0.16-0.3
Fuel consumption(kg/hm2)
3-6kg/hm2
Planting depth(mm)
0-46(adjustable)
Description The rice transplanter is an agricultural machine that implants rice seedlingsinto rice fields. When planting, firstly, severalrice seedlings are taken from the seedbed by mechanical claws to implant the soil in the field to keep the angle between theseedbed and the ground at right angles. The mechanical claws must adopt an elliptical action curve when the front end moves. Theaction is done by a planetary mechanism of a rotating or deforming gear, and the advancing engine can simultaneously drive thesemoving machines. And floating design. If the seedlings are cut into pieces, the rice seedlings are takenout from the specificseedling box and then planted mechanically.
Advantages 1. Increasing production 2. High working efficiency 3. Intelligent operation system 4. Electric staring and hand staring integrated machine 5. Multifunctional machine for transplanting and rice seeding.
Description The rice transplanter is an agricultural machine that implants rice seedlingsinto rice fields. When planting, firstly, severalrice seedlings are taken from the seedbed by mechanical claws to implant the soil in the field to keep the angle between theseedbed and the ground at right angles. The mechanical claws must adopt an elliptical action curve when the front end moves. Theaction is done by a planetary mechanism of a rotating or deforming gear, and the advancing engine can simultaneously drive thesemoving machines. And floating design. If the seedlings are cut into pieces, the rice seedlings are takenout from the specificseedling box and then planted mechanically.
Advantages 1. Increasing production 2. High working efficiency 3. Intelligent operation system 4. Electric staring and hand staring integrated machine 5. Multifunctional machine for transplanting and rice seeding.
