Air cooled 4 stroke, 1 cylinder OHV gasoline engine
Total exhaust capacity (cc)
171cc
Power/rpm
4.3hp/3600
Fuel
gasoline
Fuel tank
4L
Starting method
Recoil starter
Number of planting rows
6 rows
Planting row spacing (cm)
30
Seedling cross feed(mm/times)
10.8/26
11.7/24
14/20
Vertical depth(mm)
8-18(10 levels)
Hill space (cm)
12
14
16
17
19
21
Planting hills amout(hill/3.3m2)
90
80
70
60
55
50
Seedling pieces(pieces/hill)
2-5(adjustable)
Transplanting capacity(hm2/h)
0.16-0.3
Fuel consumption(kg/hm2)
3-6kg/hm2
Planting depth(mm)
0-46(adjustable)
Type

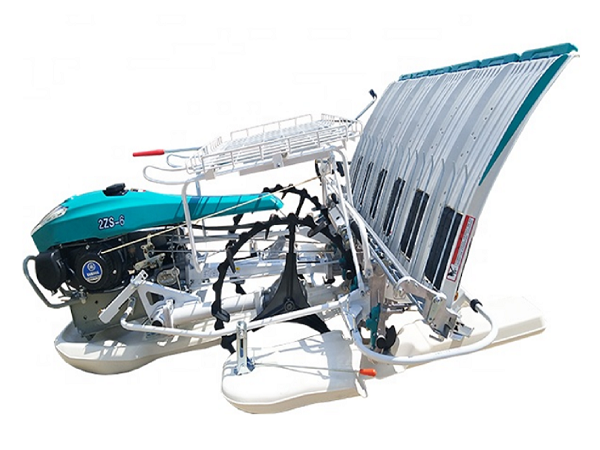

2ZS-6Walking Rice Transplanter
Usage
Rice & Wheat Harvesting
Planting efficiency (hm2/hour)
0.16～0.3
Overall dimension
2370*1930*840(950)mm
Weight
185kg
Transmission mode
Hanging gear transmission
Engine
Air cooled 4 stroke, 1 cylinder OHV gasoline engine
Total exhaust capacity (cc)
171cc
Power/rpm
4.3hp/3600
Fuel
gasoline
Fuel tank
4L
Starting method
Recoil starter
Number of planting rows
6 rows
Planting row spacing (cm)
30
Seedling cross feed(mm/times)
10.8/26
11.7/24
14/20
Vertical depth(mm)
8-18(10 levels)
Hill space (cm)
12
14
16
17
19
21
Planting hills amout(hill/3.3m2)
90
80
70
60
55
50
Seedling pieces(pieces/hill)
2-5(adjustable)
Transplanting capacity(hm2/h)
0.16-0.3
Fuel consumption(kg/hm2)
3-6kg/hm2
Planting depth(mm)
0-46(adjustable)
Description It can not only insert "blanket seedlings", but also interpolate "potseedlings", do not damage root system, turn green quickly,can effectivelyimprove rice yield. In the process of transplanting and interpolation, the seedlings were simulated by pushing the seedlings into the soil by hand, instead of being catapulted into the soil, so as to ensure the seedlings were planted in a reliable and consistent depth. Super rotary rice transplanting mechanism has the advantages of stableperformance and accurateinterpolation. Even when transplanting at highspeed, there is no need to worry about seedling lodging, floating and otheradverse phenomena.
Advantages 1.High quality,easy to maintence and control. 2.High working efficiency. 3.24 sets per 40ft container,low shipping cost. 4.Good helper for farmers.
Description It can not only insert "blanket seedlings", but also interpolate "potseedlings", do not damage root system, turn green quickly,can effectivelyimprove rice yield. In the process of transplanting and interpolation, the seedlings were simulated by pushing the seedlings into the soil by hand, instead of being catapulted into the soil, so as to ensure the seedlings were planted in a reliable and consistent depth. Super rotary rice transplanting mechanism has the advantages of stableperformance and accurateinterpolation. Even when transplanting at highspeed, there is no need to worry about seedling lodging, floating and otheradverse phenomena.
Advantages 1.High quality,easy to maintence and control. 2.High working efficiency. 3.24 sets per 40ft container,low shipping cost. 4.Good helper for farmers.
