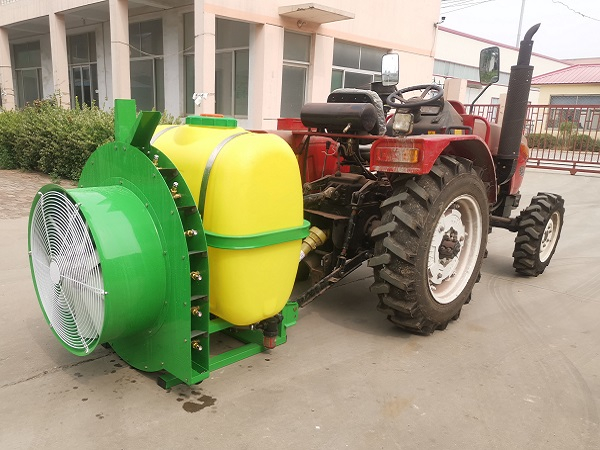

3MZ Orchard Air Blast Boom Sprayer

1. It is a 3-piont mounted sprayer.
2. High spraying pressure, adjustable angle, wide working area, good penetrating, long distance, fast wind speed
3. Imported nozzles ensure uniform spraying.
4. Low energy consumption; ideal spraying effect.
Quantity:
  • 3W-300

  • FOTMA

3MZ series of orchard spraying machine is mainly used for orchards to control pests and diseases of foliar fertilization, vegetable and vegetable wrap, forestry pest control, field sowing spraying herbicides and urban greening and other spraying operations. The machine has the characteristics of uniform mist, high production efficiency, strong penetration intensity, small labor intensity, large liquid coverage, good adhesion and so on.

Model 3MZ-300 3MZ-400 3MZ-500 3MZ-600 3MZ-700
Tank Capacity 300L 400L 500L 600L 800L
Level spray distance ≥10M ≥10M ≥10M ≥10M ≥10M
Vertical spray distance 4.5M 4.5M 4.5M 4.5M 4.5M
Working efficiency 0.6-1Ha/h 0.6-1Ha/h 0.6-1Ha/h 0.6-1Ha/h 0.6-1Ha/h
Matching power 25HP above 25HP above 30HP above 35HP above 55HP above
Sprayer Weight 160kgs 185kgs 200kgs 215kgs 240kgs
