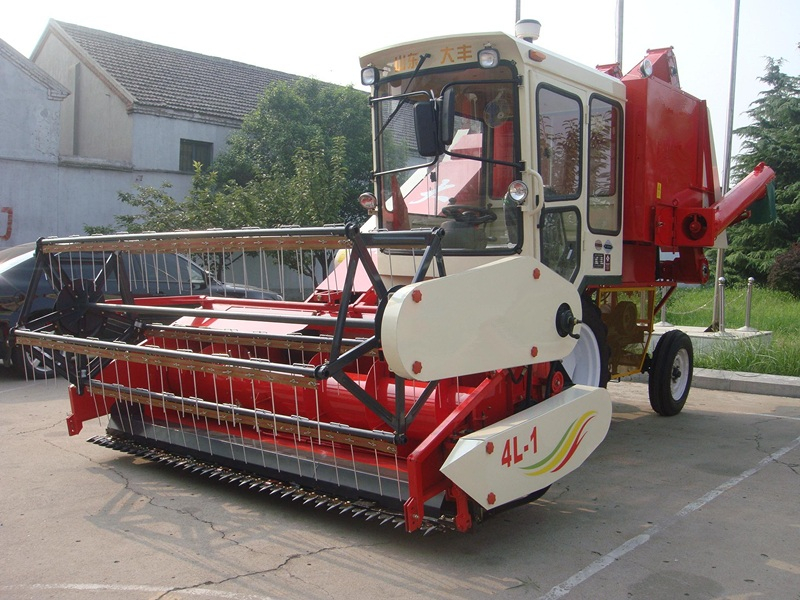

4L-1.0 Soybean Combine Harvester

The 4L-1.0 soybean combine harvester is wheeled full-feeding and self-propelled type. It use automatic formed floating cutter to ensure lowest harvesting height, and use re-threshing device to obtain low loss rate and high cleanliness.

  • 4L-1.0

  • Soybean harvesting

  • 1 unit

  • T/T or L/C at sight

  • 12 months since arrival at destination port

  • Qingdao, China

1. Use of automatic formed floating cutter to ensure lowest harvesting height.
2. Application of double rollers.
3. Use of re-threshing device obtains low loss rate and high cleanliness.
4. Short time in the machine and shorter threshing roller,increase the quality, colour and luster.
5. Stem and skin collected separately, more systematic.
Model 4L-1.0
Type Wheel full feed self-propelled
Main Performance Loss Rate ≤3.0%
Grain Broken Rate ≤5.0%
Impurities Rate ≤5.0%
Work reliability ≥90
Cutting Width(mm) 2562
Feed(Kg/s) 0.5-1.0
Running speed(Km/h) 2.48-16
Diesel Engine Model 4102
Power(KW) 48
Rotate Speed(r/min) 2600
Average Oil Consumption per Hectare(Kg/hm²) ≤19
Working Productivity(Hm²/h) 5-10
Total Weight(kg) 3050
Dimension(L×W×H)(mm) 6210 x 3180 x 2930
Ground Clearance(mm) 315
Header Reel Type Spring-tined
Reel Diameter(mm) Φ900
Reel Bat 5 Piece
Cross auger Type Screw auger, eccentric extensible link
Cross Auger Diameter(mm) Φ500
Clearance between Auger and Bed Plate(mm) 12-20
Cutter bar Stroked(mm) 76.2
Cutter bar Type Domestic strandard II
Conveyor Type Flat belt raked tine,forced feed
Width(mm) 500
Threshing Drum Type Axial flow rasp bar
Diameter(mm) Φ480 adjustable
Length(mm) 1190
Concave Type Grid based
Angle(°) 212
Separation Area(m²) 0.96
Sieve Type Double sieves + fan + re-threshing
above sieve(m²) 0.56
bottom sieve(m²) 0.7
Fan Type Retroverted straight-blade centrifugal
Diameter(mm) Φ420
Grain Auger Diameter×Thread Pitch(mm) Φ125×115
Unloading type Mechanical
Tank capacity(m3) 0.75
Chassis Type 4×2 wheeled
Front-wheel tread(mm) 1300 adjustable
Trailing wheel tread(mm) 1270 adjustable
Gear box 3×2+1
Wheelbase(mm) 1985
Front-wheel Model 9.5-24
Trailing Wheel Model 6.0-16
Tire Pressure(MPa) Trailing wheel 0.36
Running speed(Km/H) 2.8-1.9
Oil Tank Capacity(L) 47
Operator 1 Person
