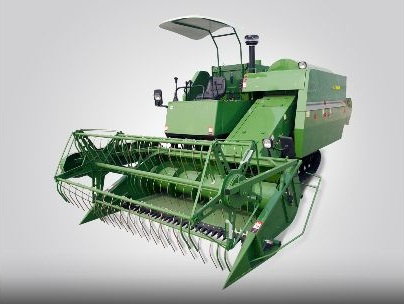

4LZ-4.0ZB Rice Combine Harvester

1. Thicker auger blades.
2. 325mm high ground clearance.
3. Waterproofing supporting wheel.
4. Longer & adjustable drum.

  • 4LZ-4.0ZB

  • Rice harvesting

  • 1 unit

  • T/T or L/C at sight

  • 12 months since arrival at destination port

  • Wuhu or Shanghai, China

1. Header: thicker auger blades, design telescopic tooth to make sure fluent transportation, and also improve  working efficiency.
2. Higher ground clearance, wider and optional track.
3. Updated waterproof supporting wheel, make your machine walking stable.
4. Adjustable guiding grass board in threshing room, together with the adjustable drum size to make of any kind of grain suitable for the harvesting process.
5. Re-threshing drum to make better efficiency.
6. With hydraulic or manual unloading optional.
7. Automatically hydraulic unloading process to improve working efficiency; Rotatable Grain Tank, Easy for Maintenance.
8. Swing cover of water tank (optional) , Human-oriented design.
9. Powerful engine and bigger fuel tank design to improve working efficiency.
10. Automatically reversing device, it is optional to prevent stalk winding and blocking.
11. Adjustable Screen by one Key Control Bolt, more suitable for different kinds of paddy.
12. Hightened unloading auger.
Model 4LZ-4.0ZB
Feed capacity(kg/s) 4.0
Dimension(L*W*H)(mm) 4990*2380*3150
Engine Type 4-cylinder in-line water cooling
Rated power(kw) 65
Speed(r/min) 2600
Fuel Diesel
Fuel consumption(kg/hm²) ≤32
Drive system-hydraulic chassis Track Specification 90 mm× 52section× 450mm
Track gauge 1150
Min. ground clearance(mm) 325
Transmission Mechanical + stepless hydraulic speed regulating (HST)
Number of shifting positions Stepless speed
Walking speed(km/h) 0-5.8
Cutting Reel Type Eccentric drawing-tooth
Diameter 900
Cutting width(mm) 2000
Blade width(mm) 2000
Header auger Spiral blade+Eccentric telescopic rod rack
Grain unloading part Grain unloading method Mechanical unloading
Grain Tank(m³) 0.33(Manuel)
Automatic reversing mechanism Equipped
Loading 3 units in a 40HC container
