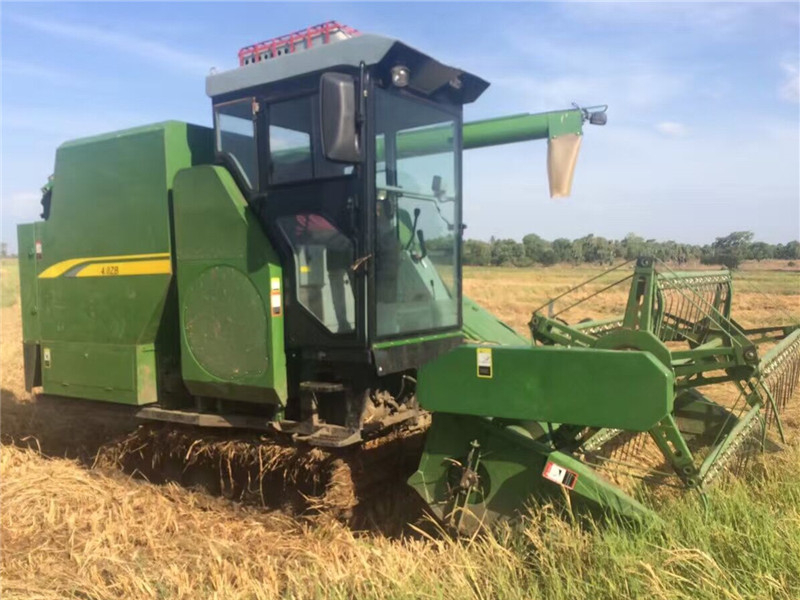

4LZ-4.0ZD Rice Combine Harvester

1. The imported HST gearbox is adopted, tailored and specialized for this model to achieve reasonable matching.
2. Equipped with a high-powered engine, giving a strong driving force.
3. Equipped with a wide-swath header, able to achieve large feeding operation.
Quantity:
  • 4LZ-4.0ZD

  • FOTMA

  • 4LZ-4.0ZD

  • Rice harvesting

  • 1 unit

  • T/T or L/C at sight

  • 12 months since arrival at destination port

  • Wuhu or Shanghai, China

Our combine harvesters are high working efficiency and low cost, which is strong power, simple operation, more peace of mind, excellent quality, better durability, large and fast feeding and harvesting.

Main Features
1.Equipped with high-quality engine of 110 horse power, giving a strong driving force;
2.Automatically 270°Hydraulic unloading type to improve working efficiency; Rotary grain tank, easy for maintenance;
3.Equipped with luxury cab with air conditioner;
4.With large cutting width of 2500mm, and 600mm wider paddy field track, better pass ability;
5.Simple operating console, hydraulic chassis driving system.
6.Equipped with double pump and motor, more easy for steering and transmission.
Model 4LZ-4.0ZD
Feeding capacity (kg/s) 4.0
Overall Dimension L*W*H (mm) 5270*2300*2960
Weight(kg) 3150
Working efficiency (hm2/h) 0.3-0.7
Engine
Type  4-cylinder in-line water cooling
Rated Power (hp) 88/95/100
Speed(r/min) 2600
Fuel Diesel
Fuel tank capacity(L) 160
Fuel Consumption(kg/hm2) ≤32
Drive System
Track Specification 90 mm× 53section× 500mm

Track gauge 1250
Minimum Ground Clearance(mm) 325
Transmission Mechanical(75 gear)+ stepless hydraulic speed regulating (HST)
Number of shifting positions stepless speed
Walking Speed(km/h) 0-5.8
Cutting
Reel Type Eccentric drawing-tooth

Diameter(mm) 900
Cutting Width(mm) 2000
Blade Width(mm) 2000
Header auger Spiral blade+Eccentric telescopic rod rack
Grain unloading Part
Grain unloading method  270° hydraulic unloading
Grain Tank() 1.5
Other configuration
Automatic reversing mechanism Equipped
Dust fan Equipped
Anti-grass case Equipped
Belt for main clutch & walking MISUBUSHI
Bearing NSK
